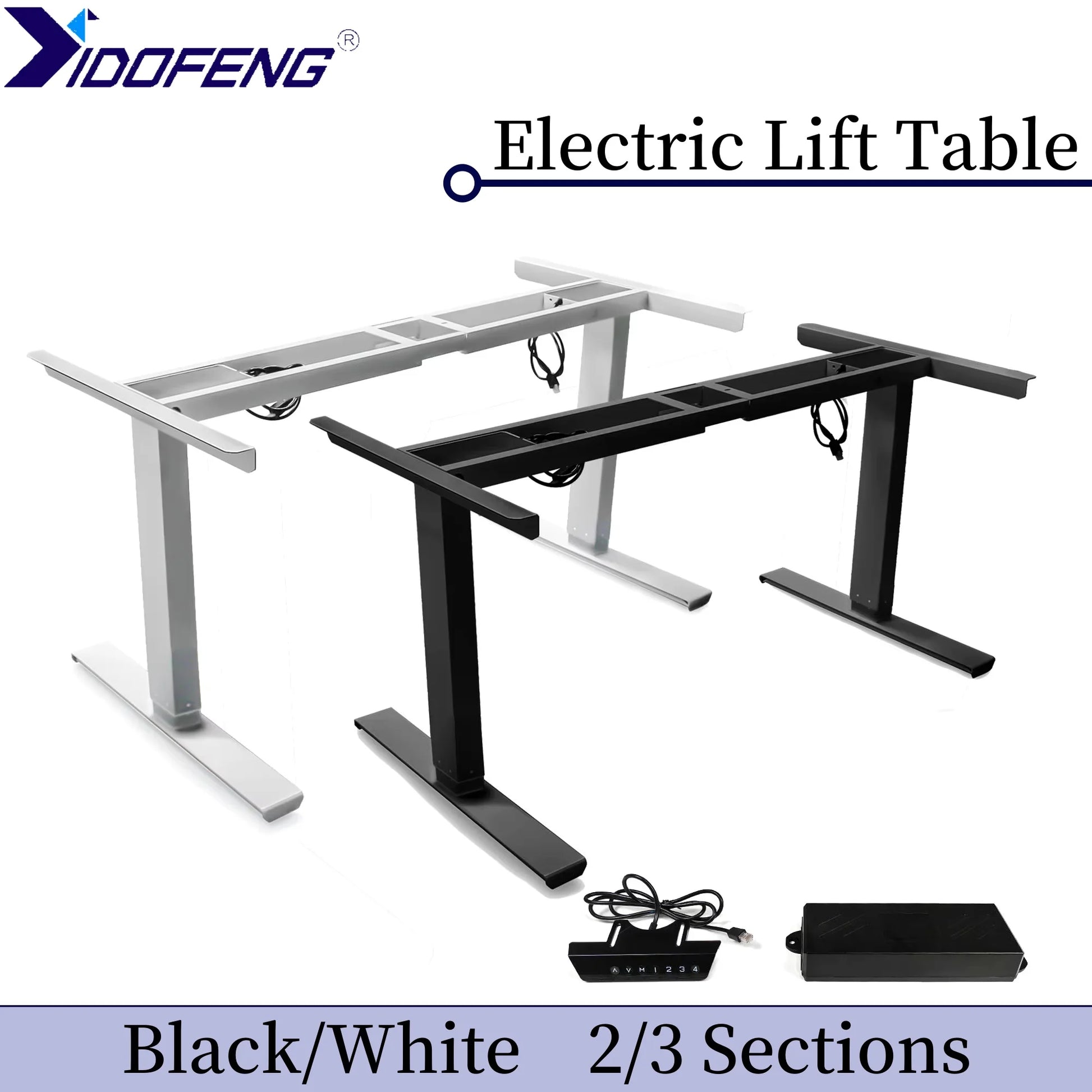

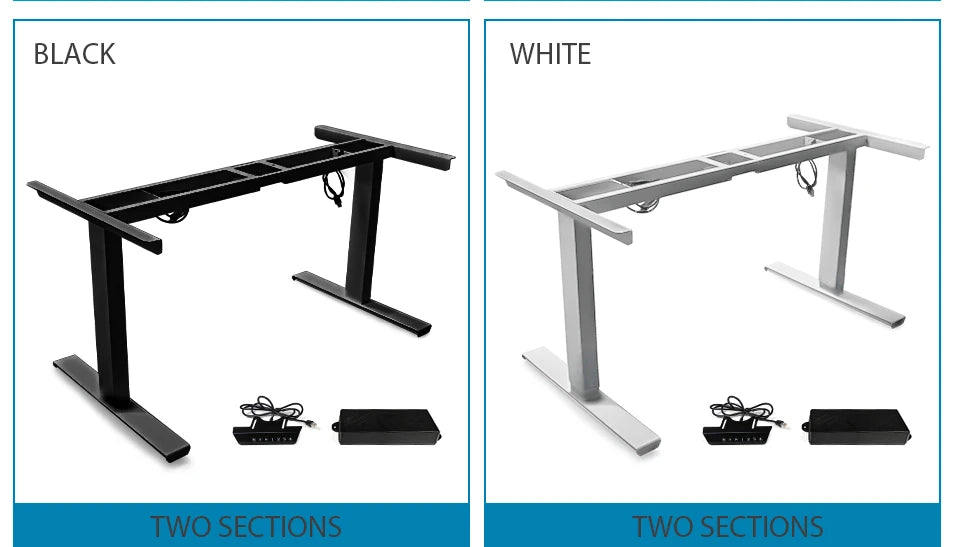

Black or White Electric Stand Up Desk Two/Three Sections Electric Dual Motor Height Adjustable Table Lifting Desk Frame

Black or White Electric Stand Up Desk Two/Three Sections Electric Dual Motor Height Adjustable Table Lifting Desk Frame

$542.13 USD
$0.00 USD $542.13 USD
Sale Sold out
Color
Ships From

SPECIFICATIONS

Appearance: Modern Style

Brand Name: NoEnName_Null

Depth: Deep (greater than 30 in.)

Duty Cycle: Max.10% or 2 min.on and 18 min.off

General Use: Commercial Furniture

Hign-concerned Chemical: None

Input: 220-230VAC

Installation Method: Assembly

Load: 60-100KGS

Load Capacity: 1000N

Material: Metal

Max Speed: 15MM/S

Min Install Dimension: 700MM

Operation Temperature: 0-40℃

Origin: Mainland China

Output Power: 24VDC

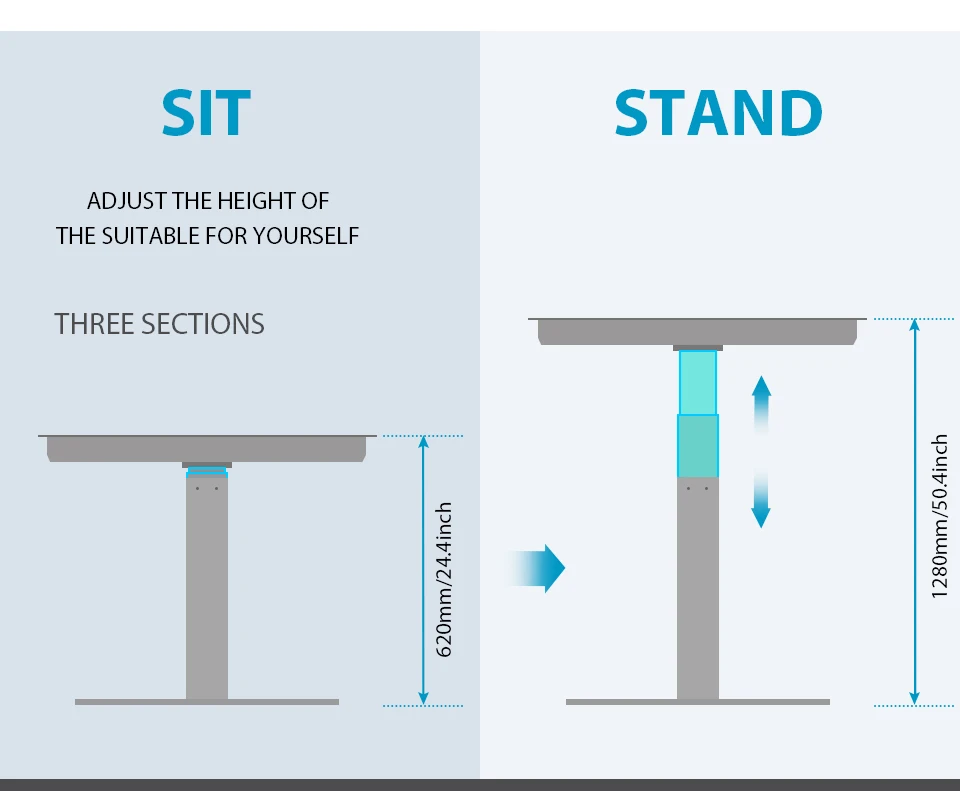

Size: high/low limit of this frame is 23.4"-49" (height),41.1"-53.7" (Width)

Specific Use: Office Desks

Stroke: 480MM

Type: Office Furniture,Black/White Two/Three section adjustable

With Cabinet: No

With Keyboard Shelf: No

With Rollers: No

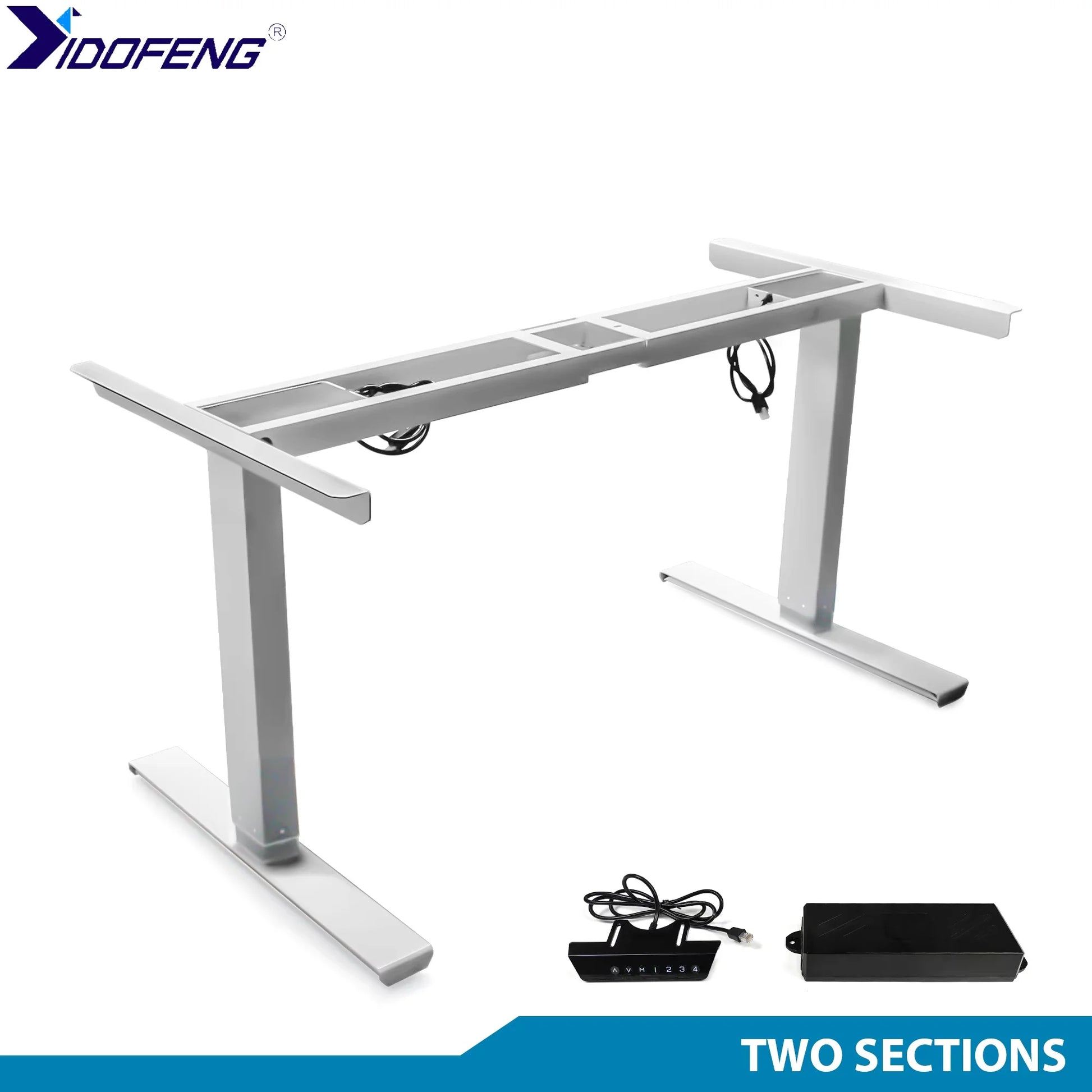

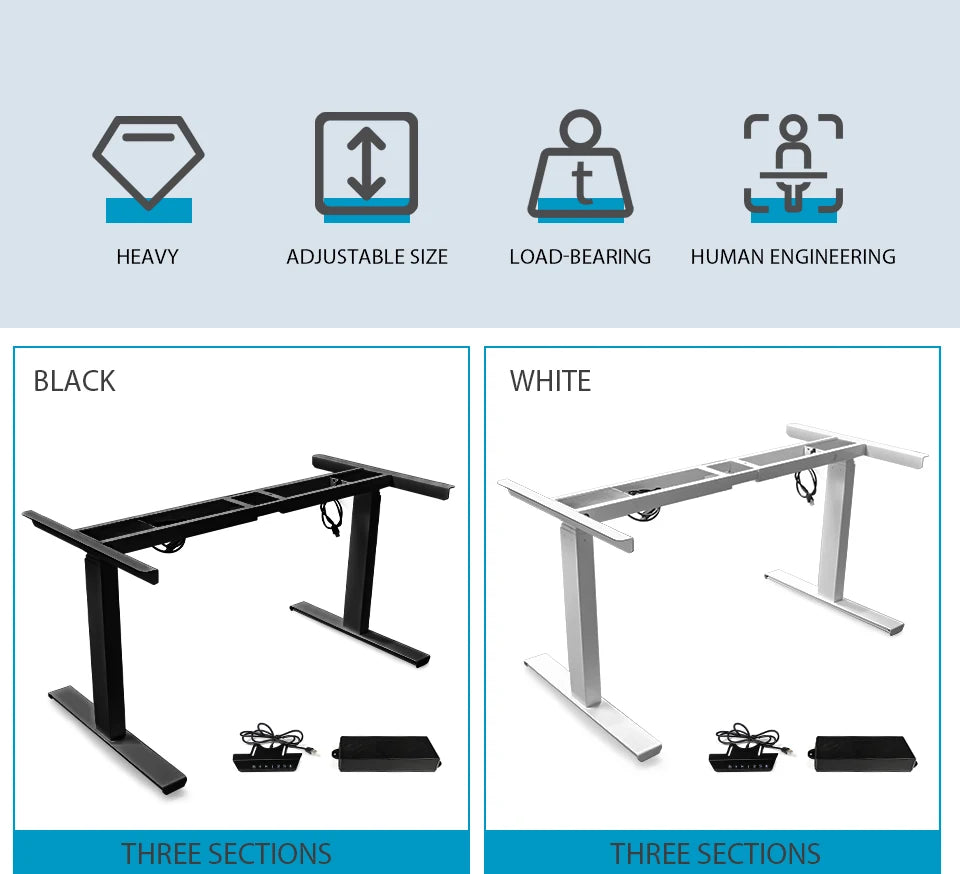

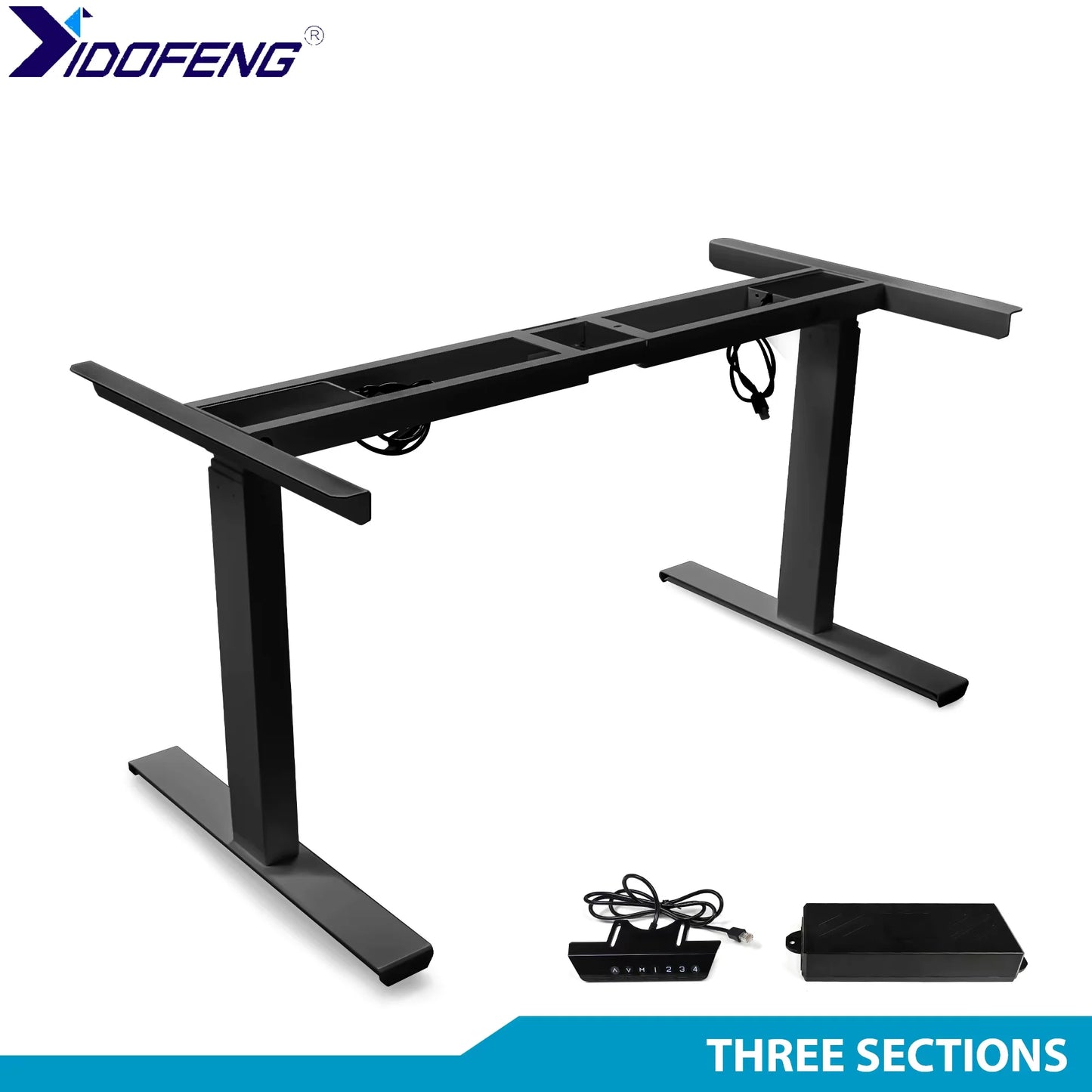

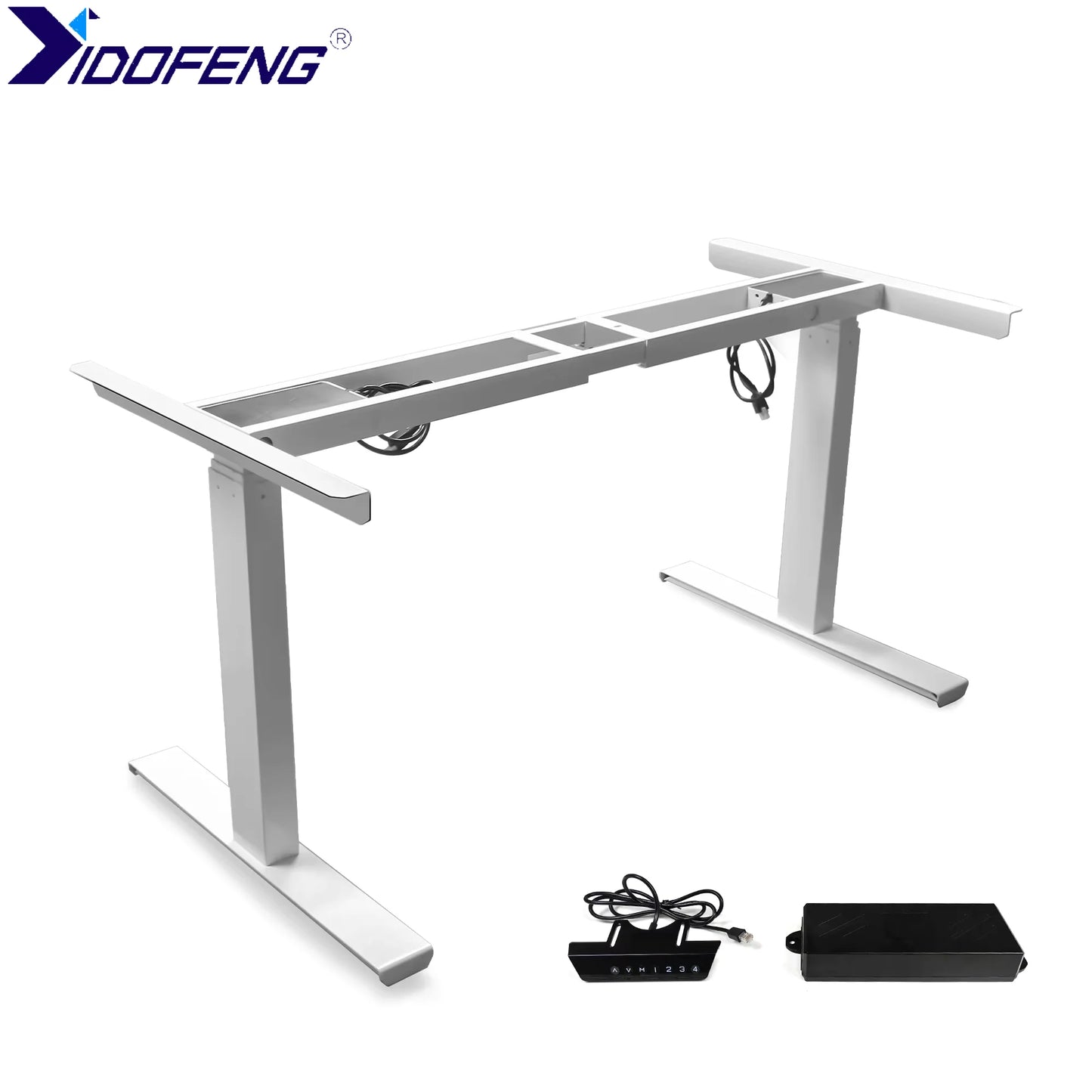

Black or White Electric Stand Up Desk Two/Three Sections Electric Dual Motor Height Adjustable Table Lifting Desk Frame

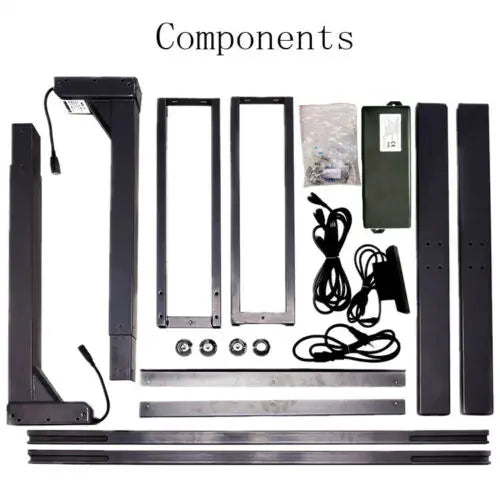

Package include:

1 x black two sections/black three sections/white two sections/white three sections

1 x English user manual and Installation instruction will send by Email

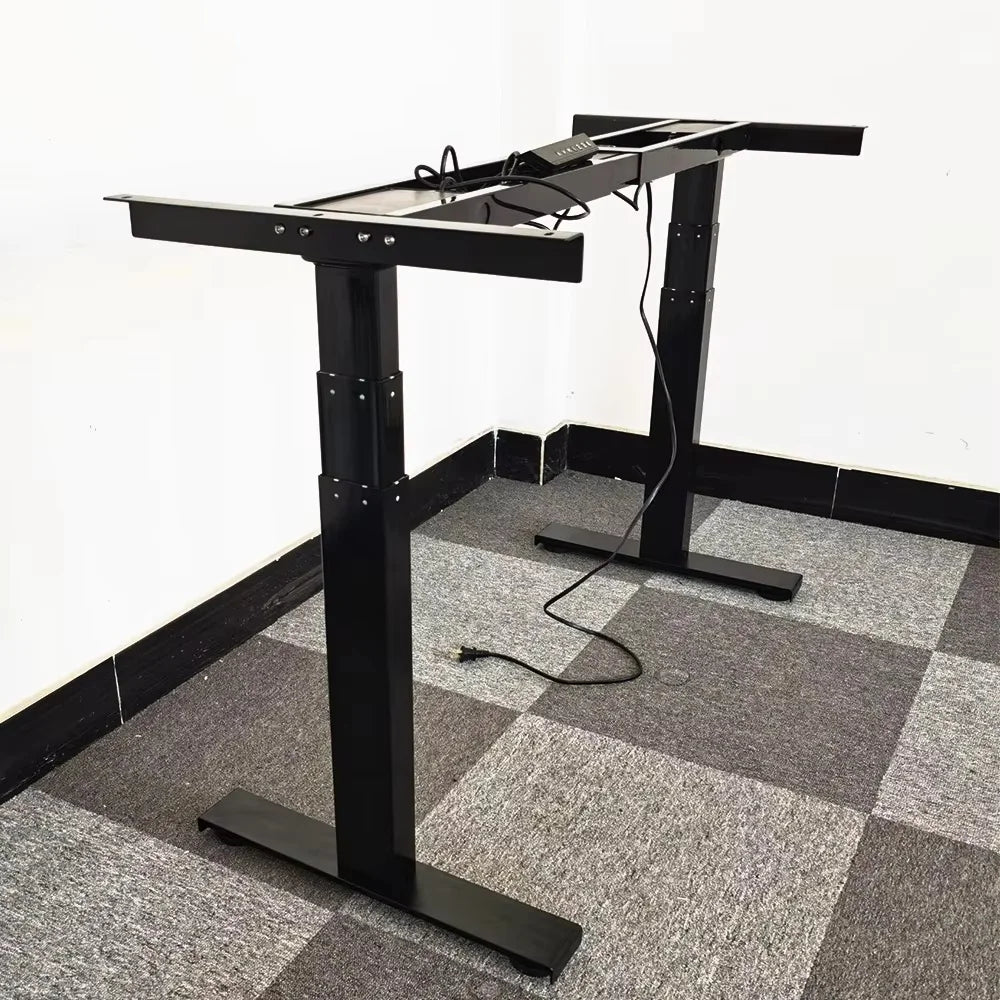

Durable Steel Plates
This desk frame is made up of high-strength steel plates, which is thick, sturdy, and lasts for a longer time. It is non-break & stable.

Strong Dual Motors

It is equipped with two powerful motors at each side, which will lift or down the desk legs smoothly and quietly.

Convenient Digital Controller

Offer a smart control center behind the tabletop. Real-time desk height can be displayed with a LED screen. The four preset heights and memory function are provided.







Technical Specifications
Input: 220-230VAC
Output Power: 24VDC
Load Capacity:1000N
Max.Speed: 15MM/S
Stroke:480MM
Min.Install Dimension:700MM
Load:100KGS
Operation Temperature: 0-40℃
Duty Cycle:Max.10% or 2 min.on and 18 min.off

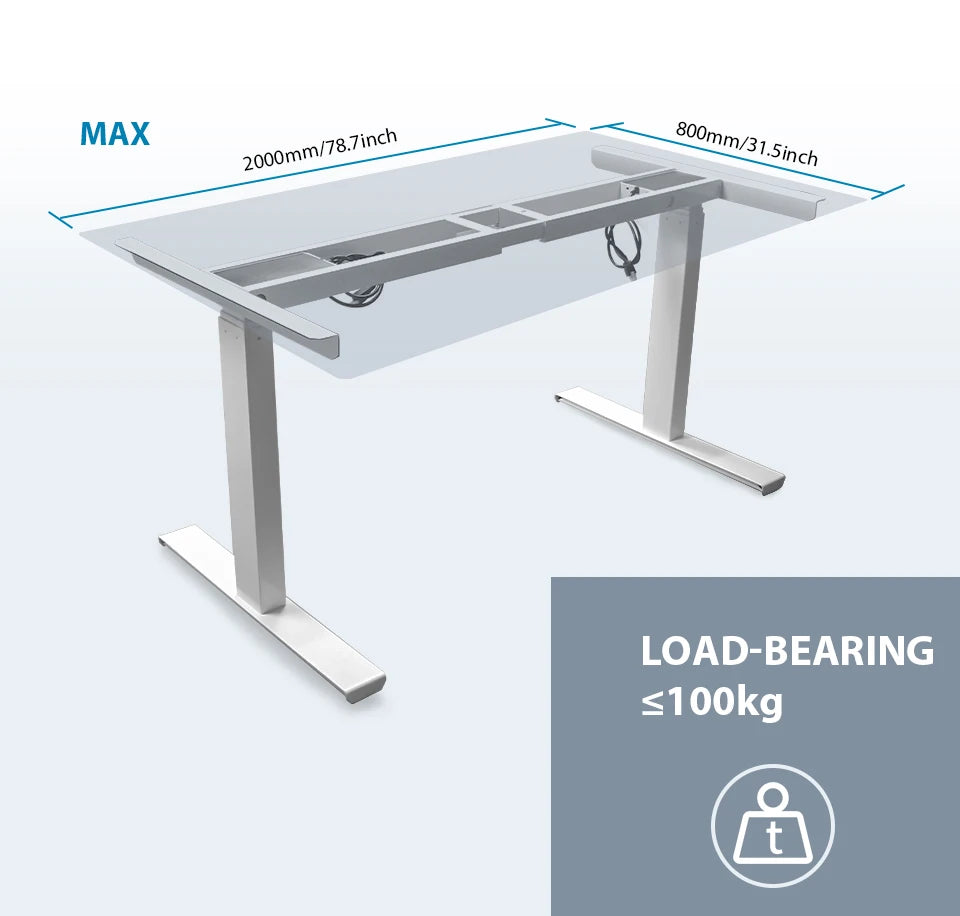

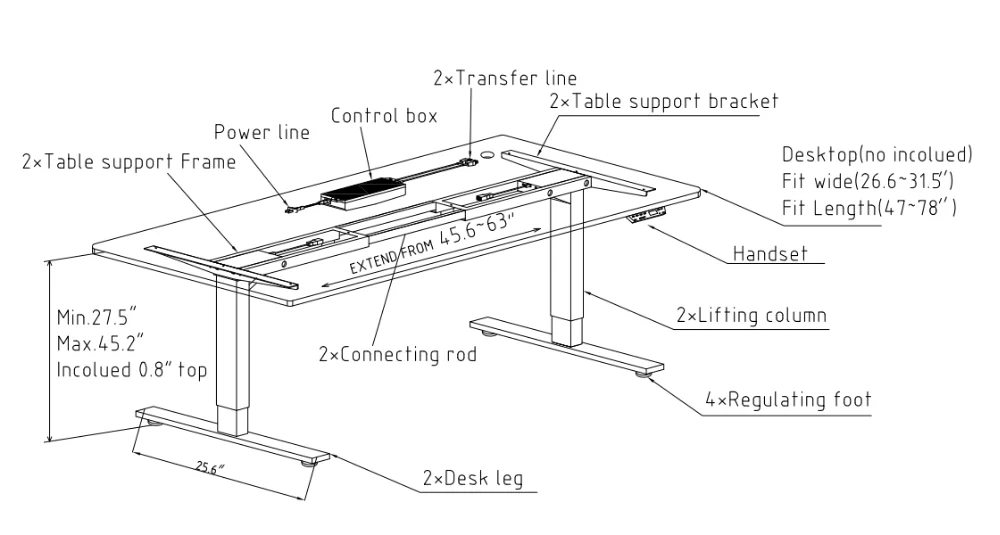

Size: high/low limit of this frame is 23.4"-49" (height),41.1"-53.7" (Width)

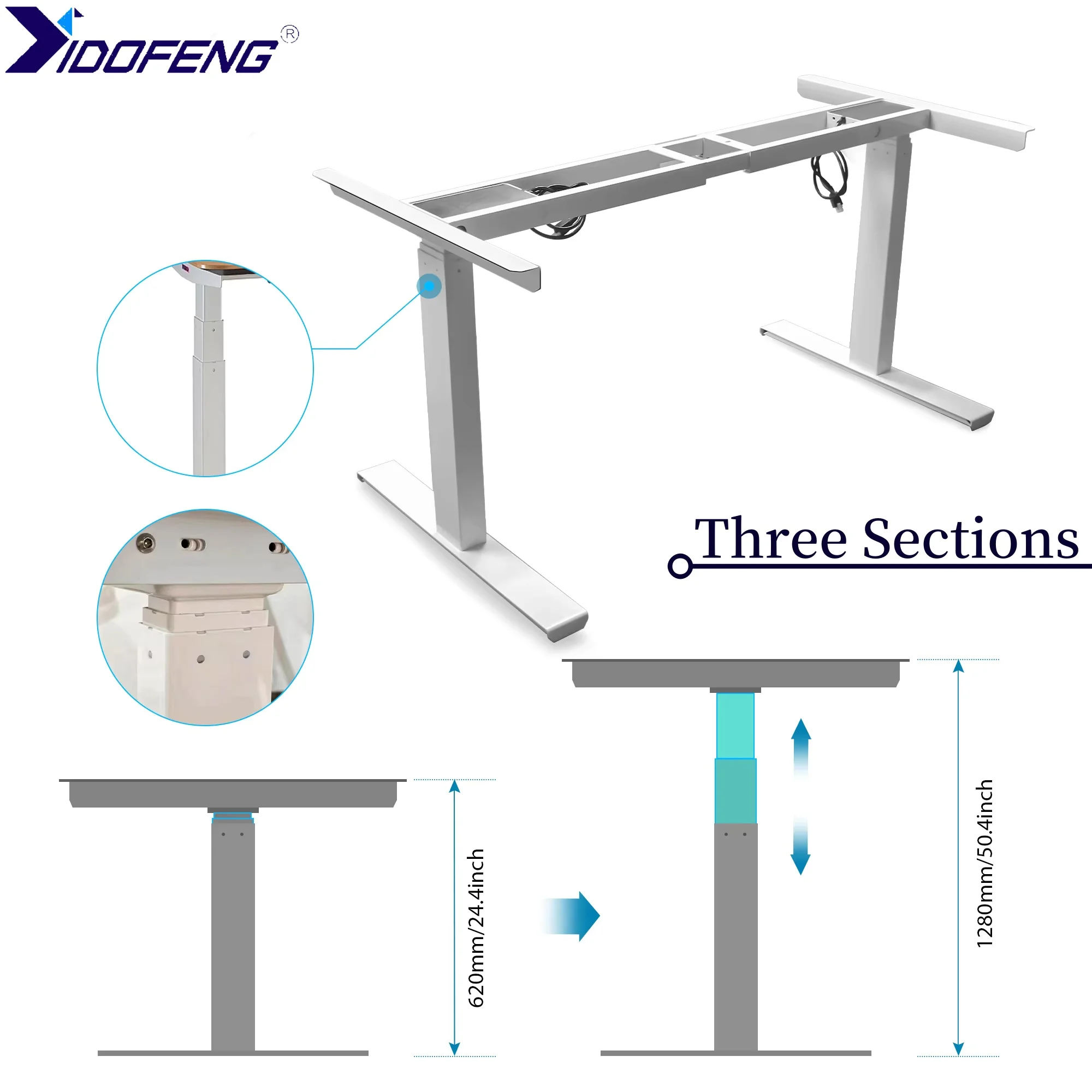

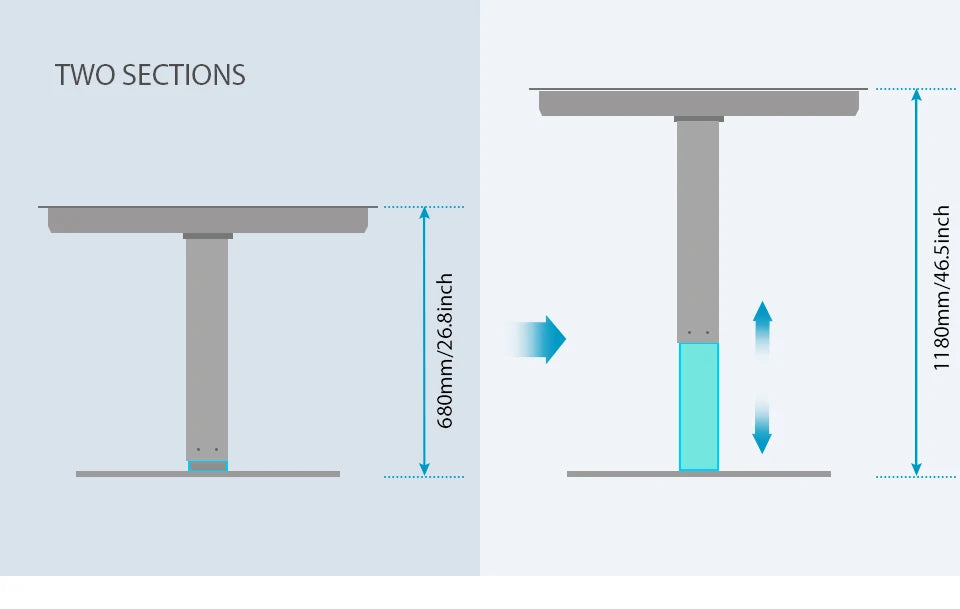

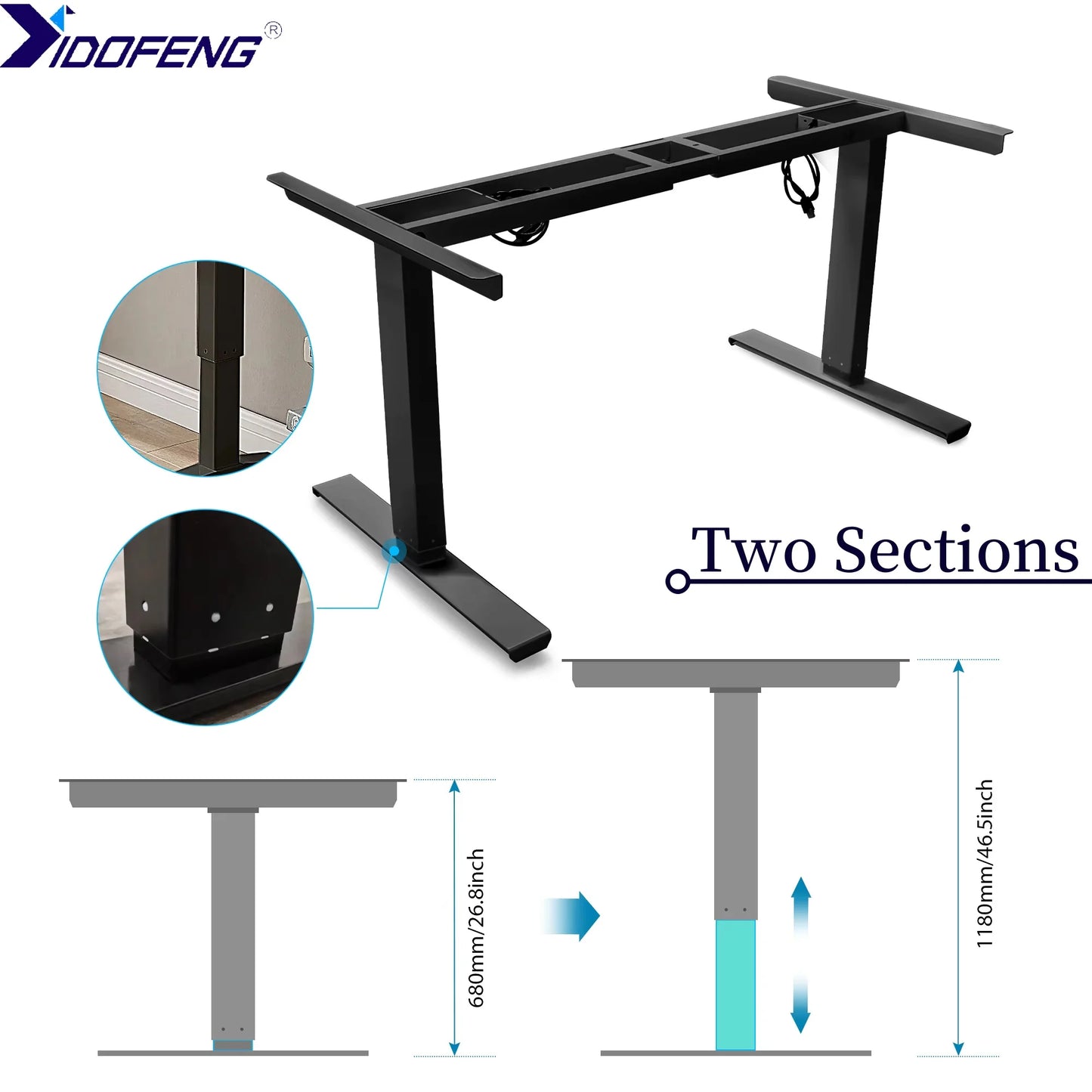

this frame is two section adjustable
This frame include dual motor
the maximum Load is 800N


Direction for Use

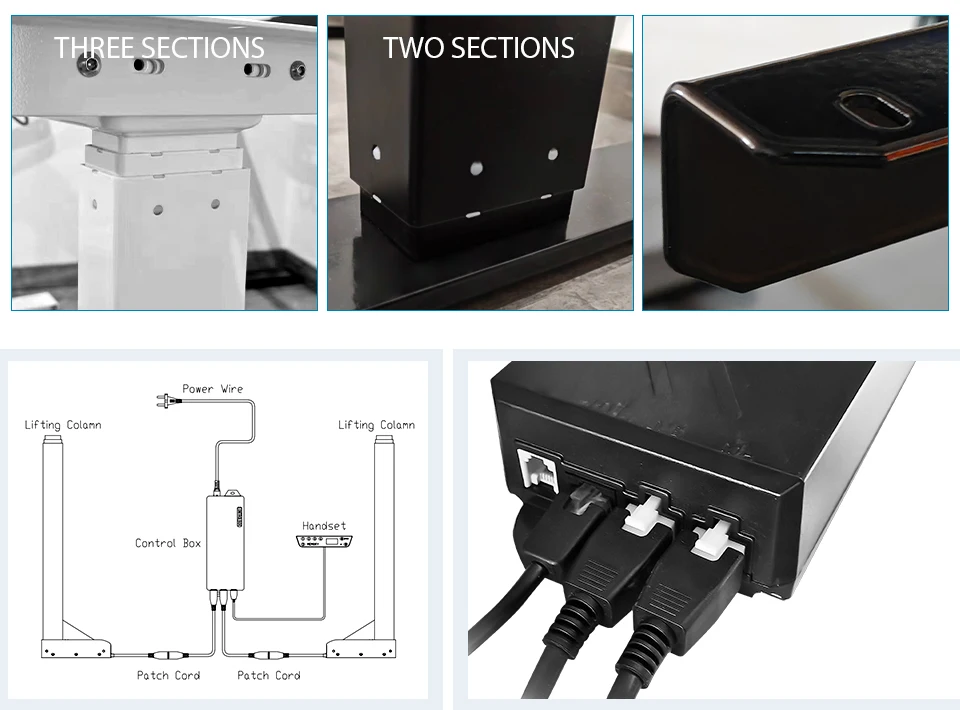

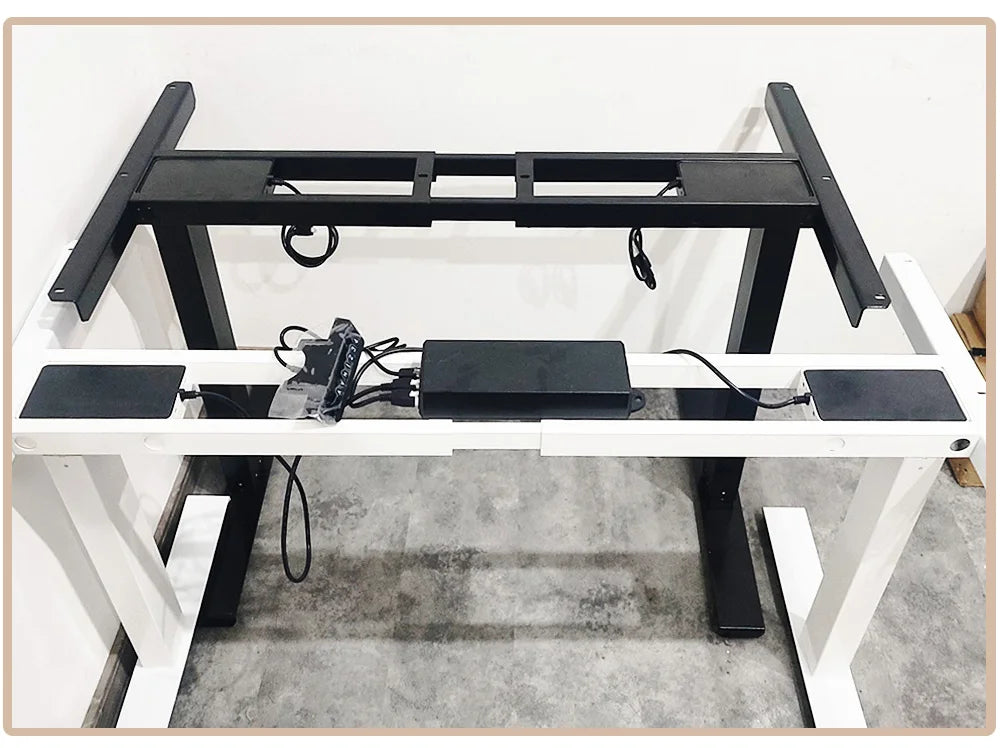

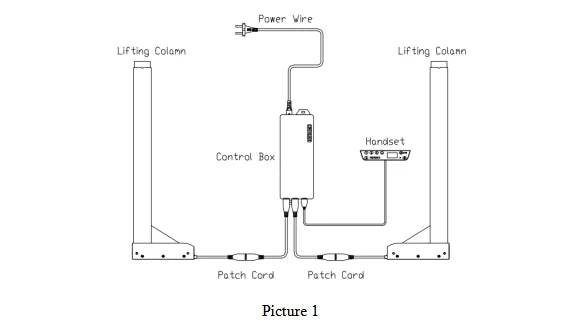

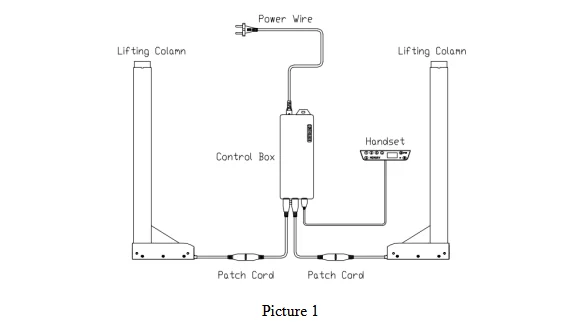

1. Correctly connect the Control Box,Handset,Power Wire,Lifting Column, Patch Cord.(Picture 1).
2. Plug the power cord into 110~230VAC outlet:The Digital Tube will  display “PON” for seconds it means electrified successfully,need to reset.
   After reset the Digital Tube will display 23(MM),reset finished.
   RESET:
   Press and hold the down button, after 5 seconds the desk will begin tolower, until to the lowest height then slightly rise.Reset finished.
   Release the down button.
3. After reset,press and hold “UP” button,lifting column will rise,release to  Stop.
4.  After reset,press and hold “DOWN” button,lifting column will fall,release to Stop.
5. How to memory:
   After pressing and holding UP/DOWN button to a height,press button S  first,then press button 1,this height will be remembered by button 1.Still pressing and holding UP/DOWN button to another height,press button S,then press button 2,this height will be remembered by button 2.
 The same way,the button 3,4 can remember other heights.
   After memory,press 1/2/3/4 button,desk will motion to the height it  remembers,press “UP” and “DOWN” button.The motion will bestopped.

Notice

1.This product must be used under the correct technical parameters.
2.Keep away from liquids,corrosive gases,dusty environment.
3.Contact our factory when necessary.

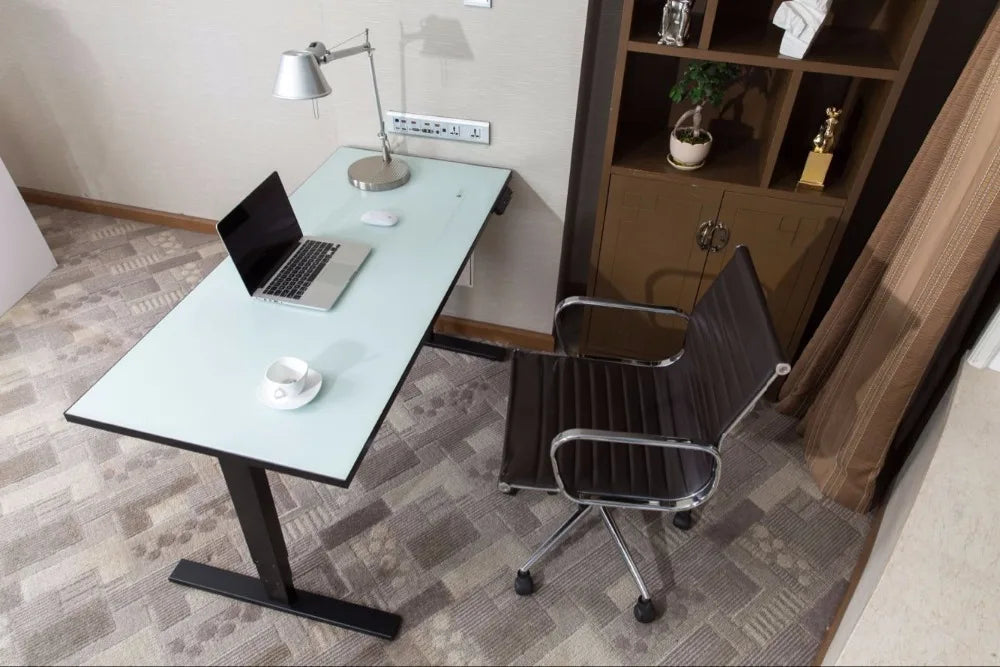

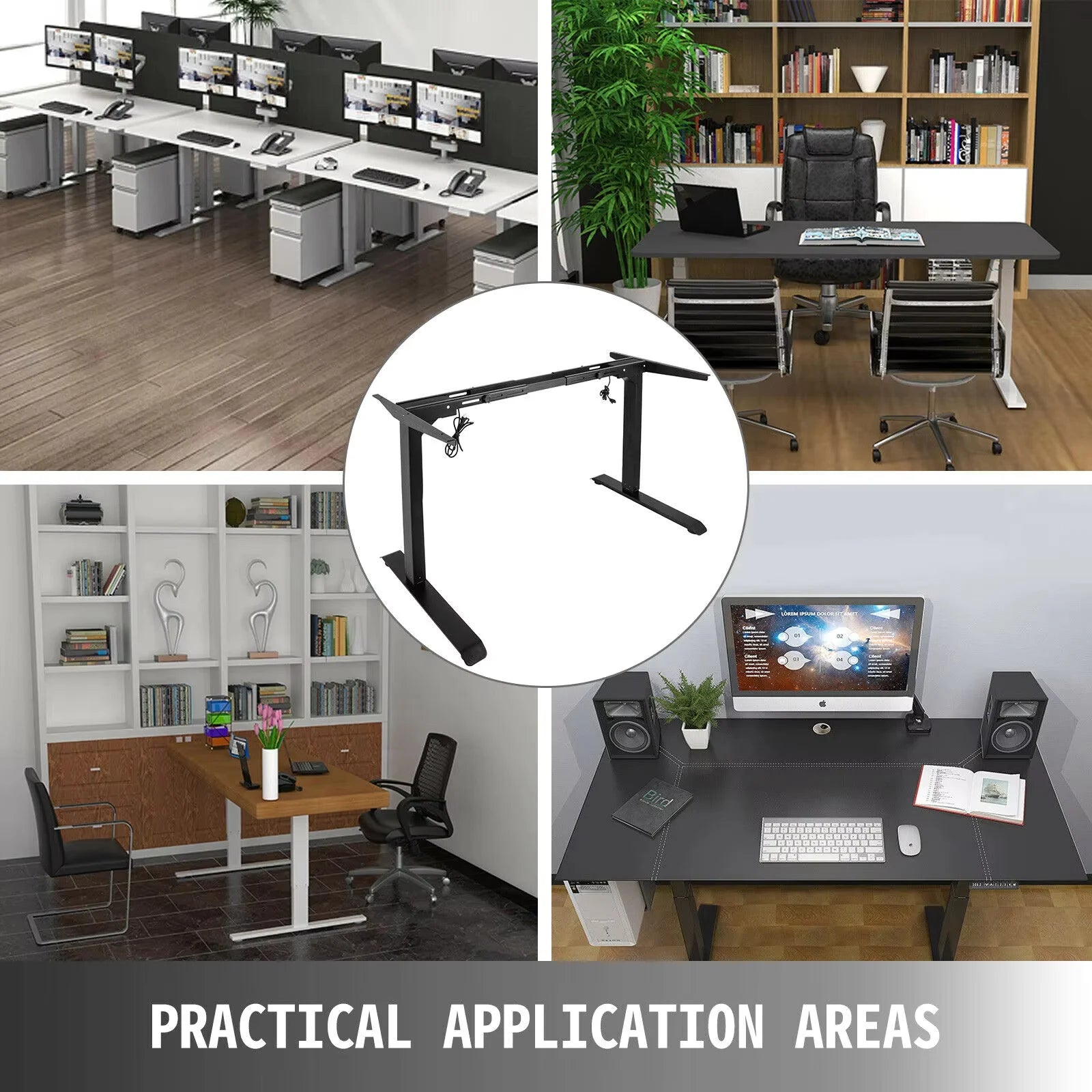

Application scenario:

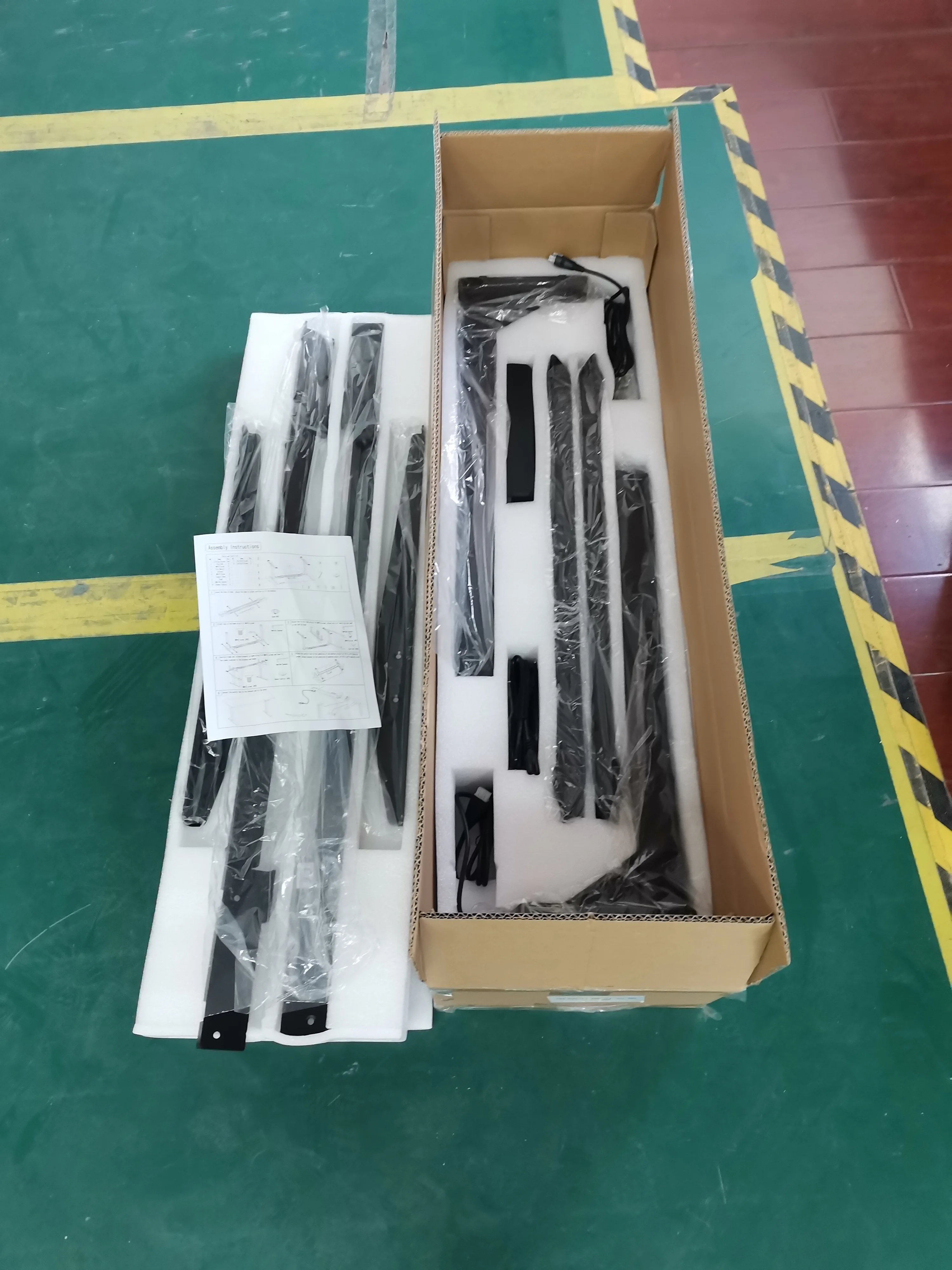

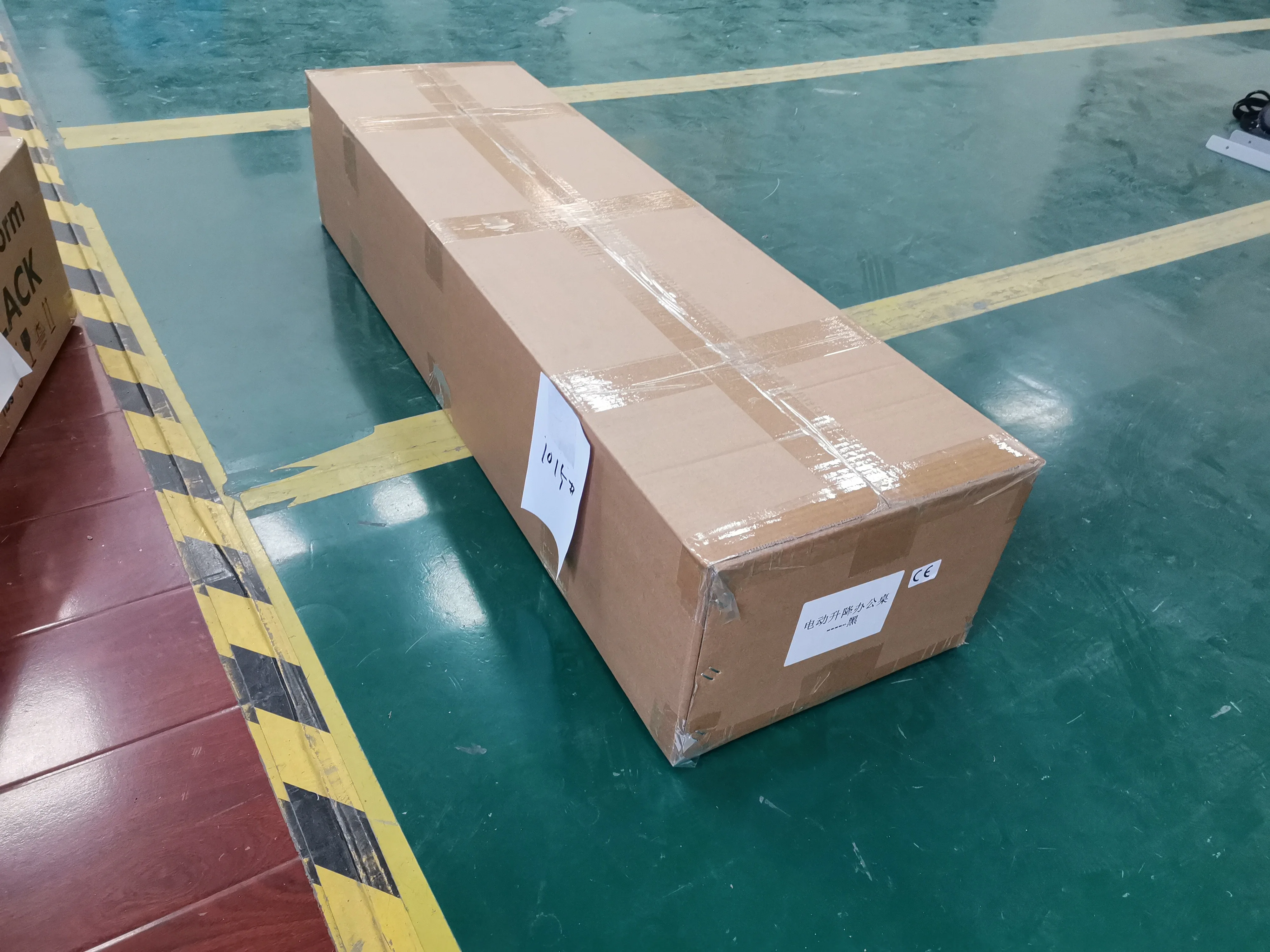

Package details:
