SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Brand Name: EOEXBY

Certification: CE

Current: 60A/80A/100A

Hign-concerned Chemical: None

Is Smart Device: No

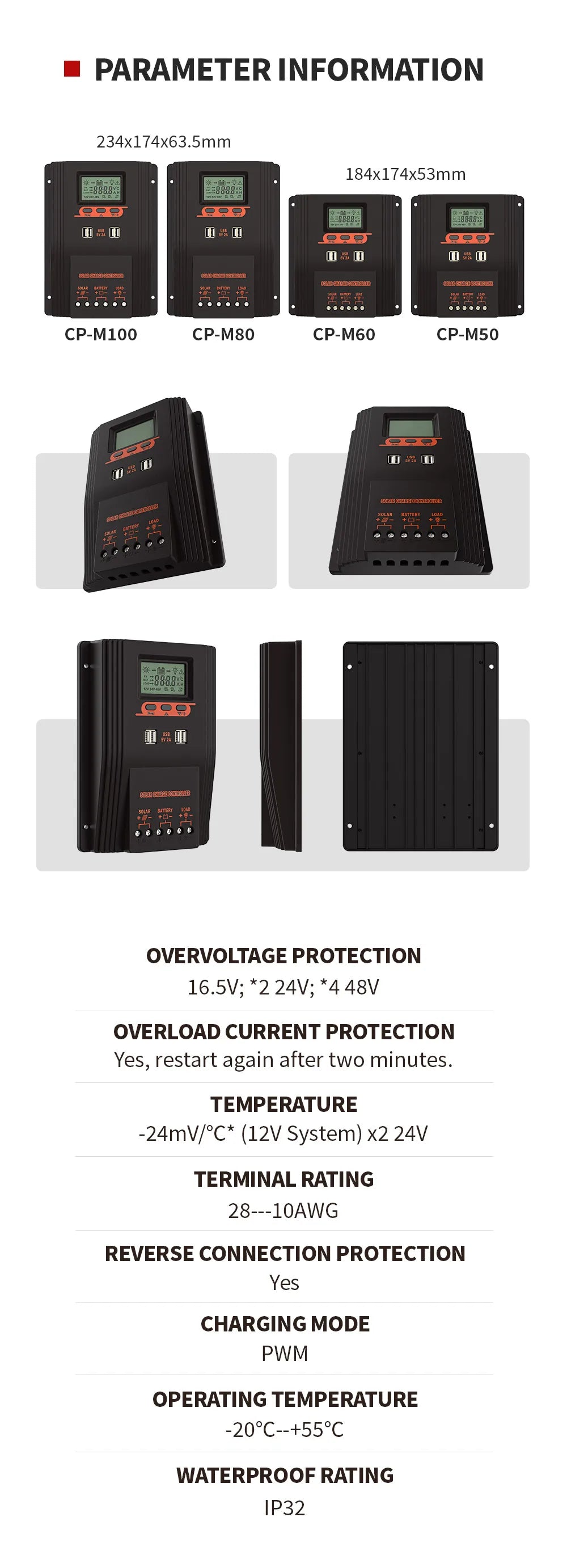

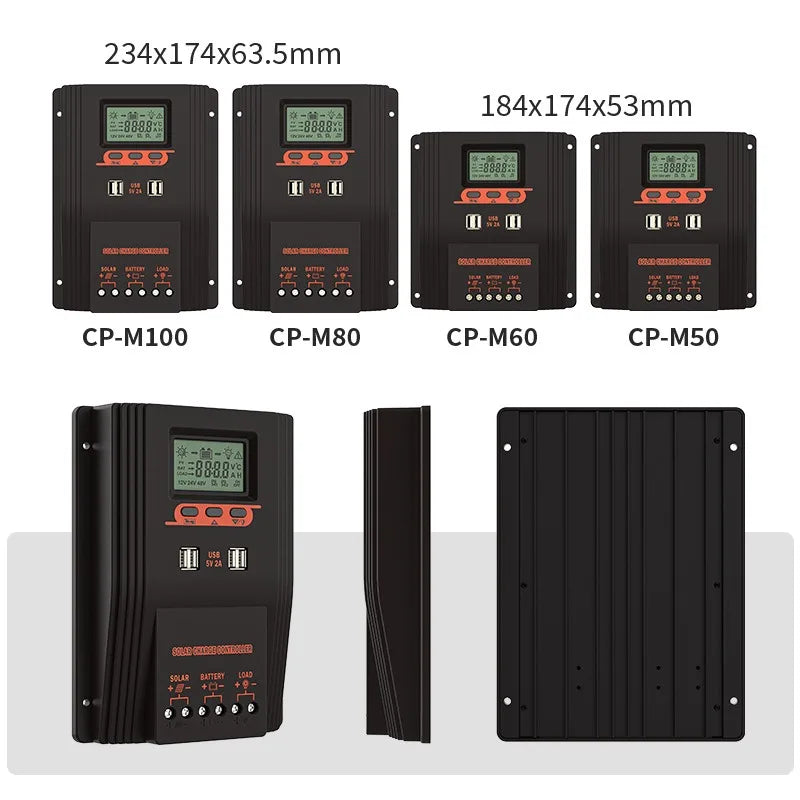

Item size: 184x174x53mm/234x174x63.5mm

Material: plsctics+aluminum

Max Input voltage: 100V

Maximum Current: 100\A

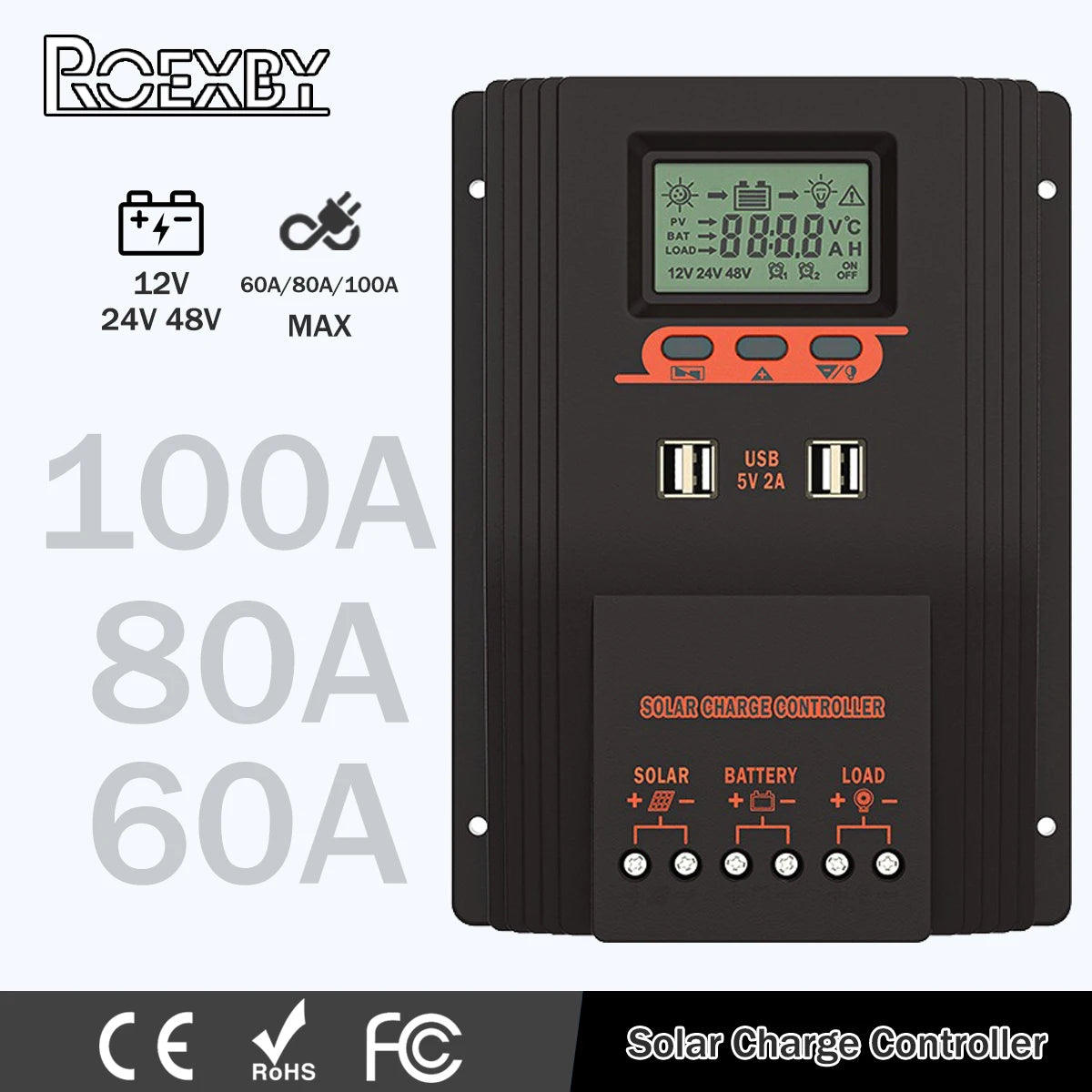

Name: Solar MPPT/PWM Controller

Origin: Mainland China

Output voltage: DC12V/24V, DC36V, DC48V, DC 5V/2A*4USB

Working temperature: -25℃ to 55℃

Product Introduction

Welcome to our solar charge controller. This controller is specially designed for off-grid solar systems, mainly used to control the charging and discharging of batteries, protect batteries, and optimize the charging process to extend battery life and improve system performance.

Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

Key Features

• Intelligent System Voltage Recognition: Automatically identifies 12V/24V/48V system voltage.36V needs manual setting

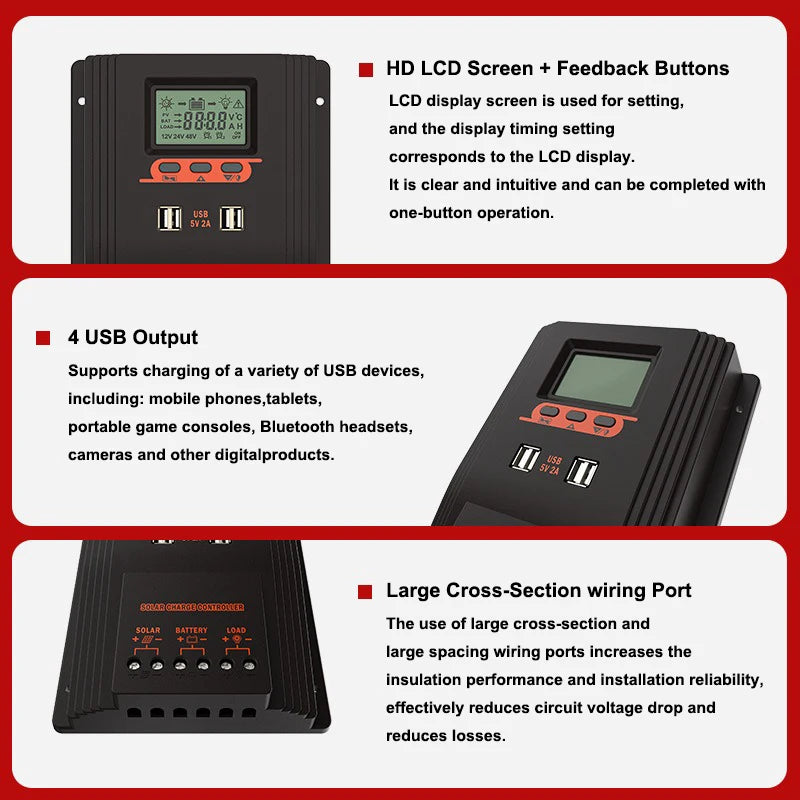

• User-Friendly LCD Display: Friendly user interface with three-key operation, simple and convenient.

• Efficient Intelligent PWM Three-Stage Charging: Optimizes the charging process, enhancing battery life.

• Multiple Load Control Modes: Supports night street light timing function and selectable load control modes.

• Comprehensive Protection: Offers over-voltage, short circuit, overload, overcharge, and over-discharge protection.

• Accurate Temperature Compensation: Automatically corrects charging and discharging voltage, further extending battery life.

• Reverse Connection Protection: Comprehensive protection for positive connections of solar panels, batteries, and loads.

• Reasonable Design: Common positive design for solar panels, batteries, and loads, ensuring system stability.

Specifications:

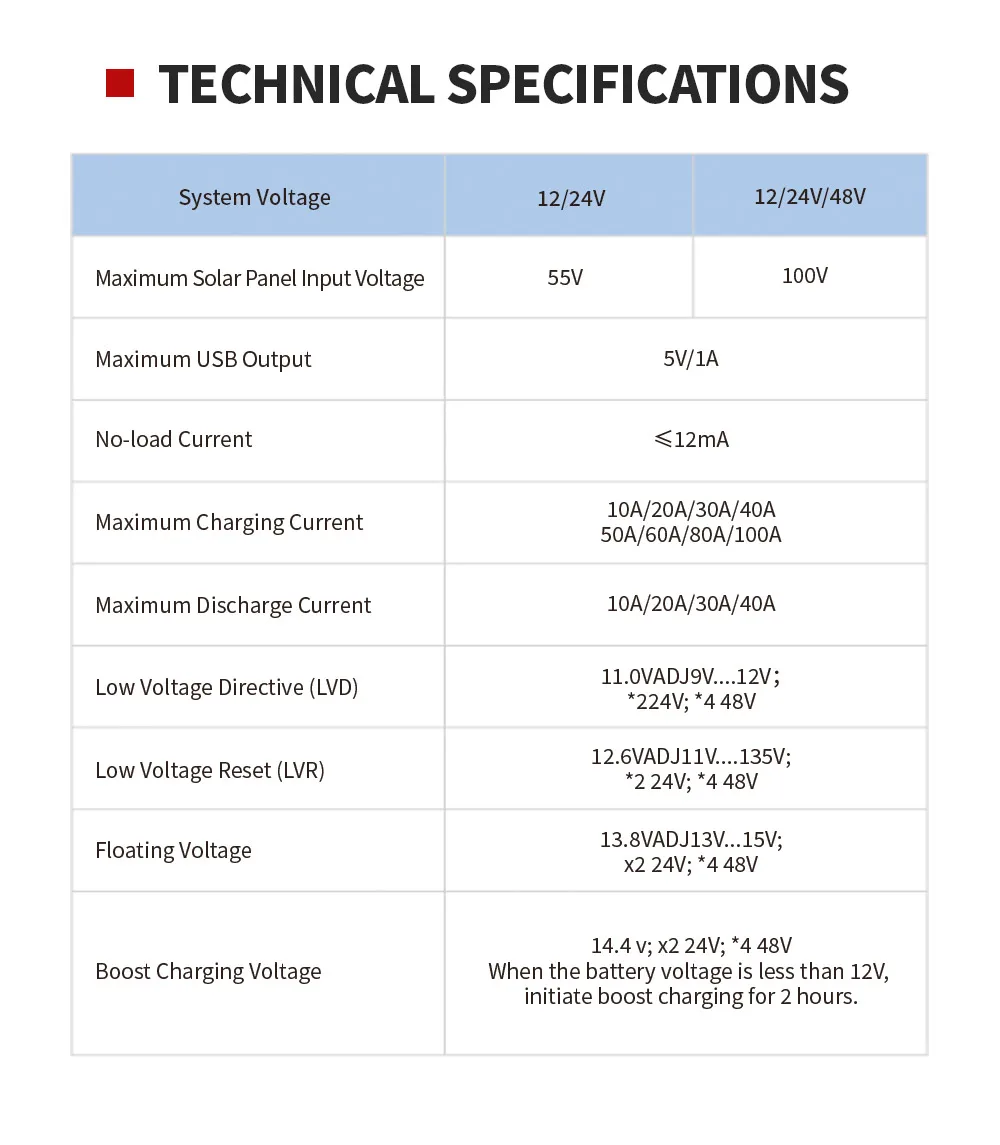

1 ~ Battery Voltage12V/24V/36V/48V

2 ~ 4* USB 5V/2A charging ports

3 ~ Charging Current60A/80A/100A

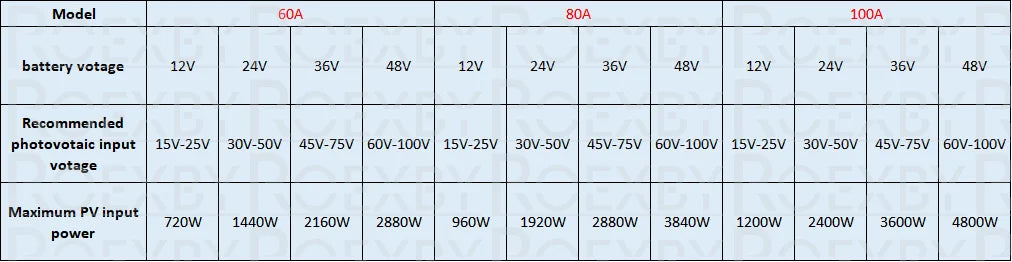

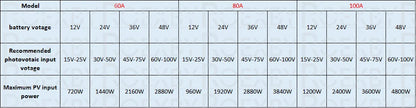

4 ~ Max Solar Input(Voc)15-25V(12V Battery);30-50V(24V Battery);45-75V(36V Battery);60-100V(48V Battery)

5 ~ Maximum PV Input power

(60A)720W(12V Battery);1440W(24V Battery);2160W(36V Battery);2880W(48V Battery)

(80A)960W(12V Battery);1920W(24V Battery);2880W(36V Battery);3840W(48V Battery)

(100A)1200W(12V Battery);2400W(24V Battery);3600W(36V Battery);4800W(48V Battery)

6 ~ Compatible battery types, Seal, GEL, Flooded, and LifePO4 etc.

7 ~ With multiple protection functions such as over-voltage protection, over-current protection and over-temperature protection

Installation and Connection

• Fixing the Controller: It should be installed in a well-ventilated place, avoiding direct sunlight and water contact.

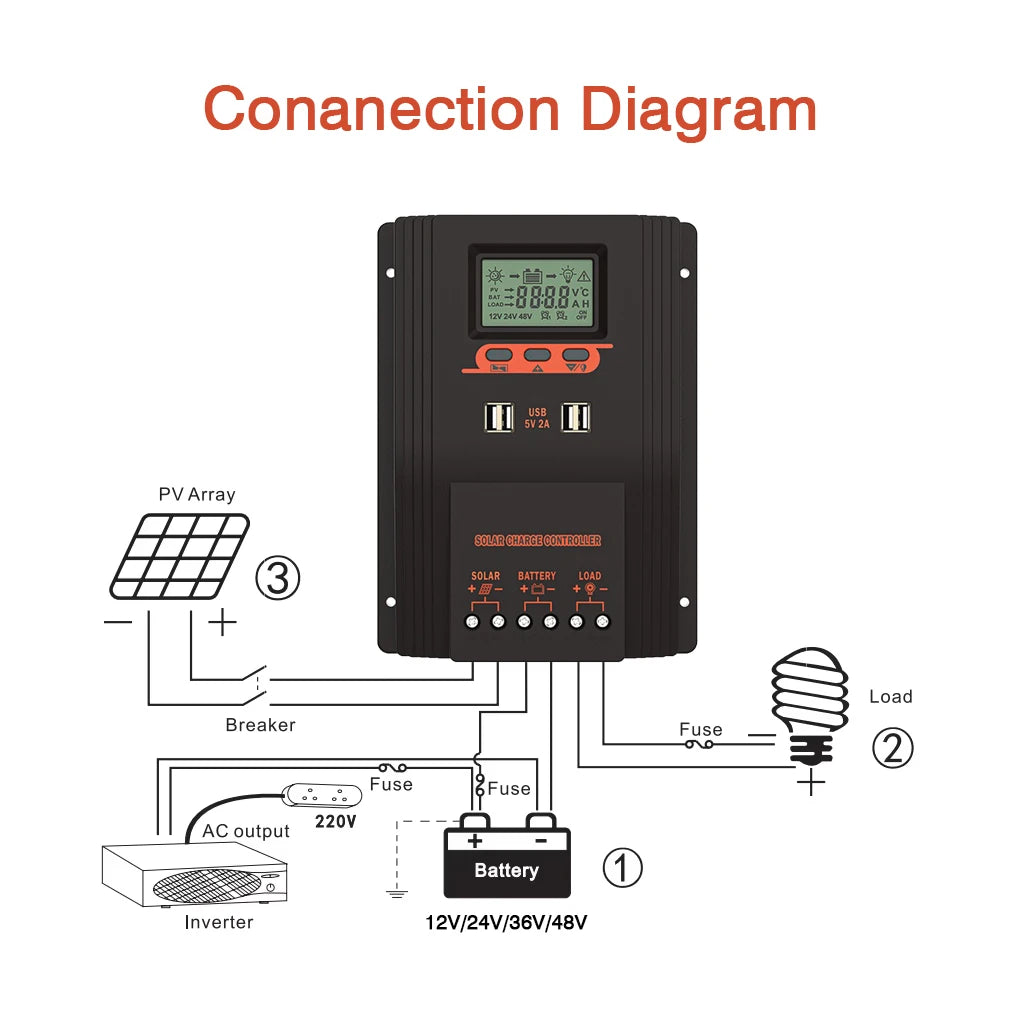

• Connection Sequence: Connect the battery first, then the solar panel, and finally the load. Ensure correct connections to avoid reverse polarity.

Operation and Indication

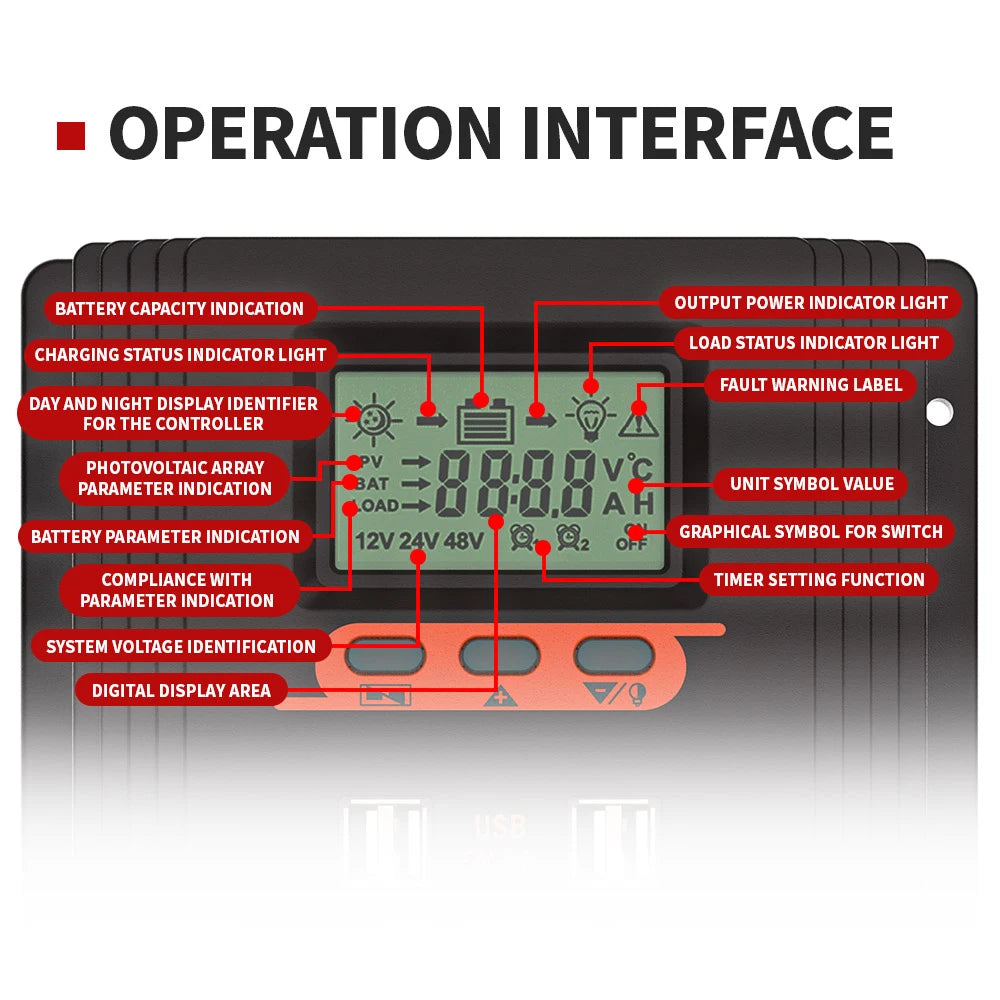

• Main Interface Display: Includes battery voltage, solar panel voltage, ambient temperature, and other parameters.

• Parameter Settings: Supports settings for battery type, overcharge voltage, over-discharge recovery voltage, over-discharge voltage, load mode, and system voltage.

• Protection Functions: Provides low battery voltage protection, over-voltage disconnection, overload current protection, and overcharge current protection.

Common Issues and Troubleshooting

• Abnormal Battery Voltage: Check battery connections and voltage status, and increase charging current if necessary.

• Overload or Short Circuit: Confirm if the load terminal is short-circuited, and reduce the load power.

• Excessive Charging Current: Reduce the power of the photovoltaic panel to ensure the charging current is within the controller's rated range.

Package includes:

Solar controller*1

User manual*1
