Specific operation steps:

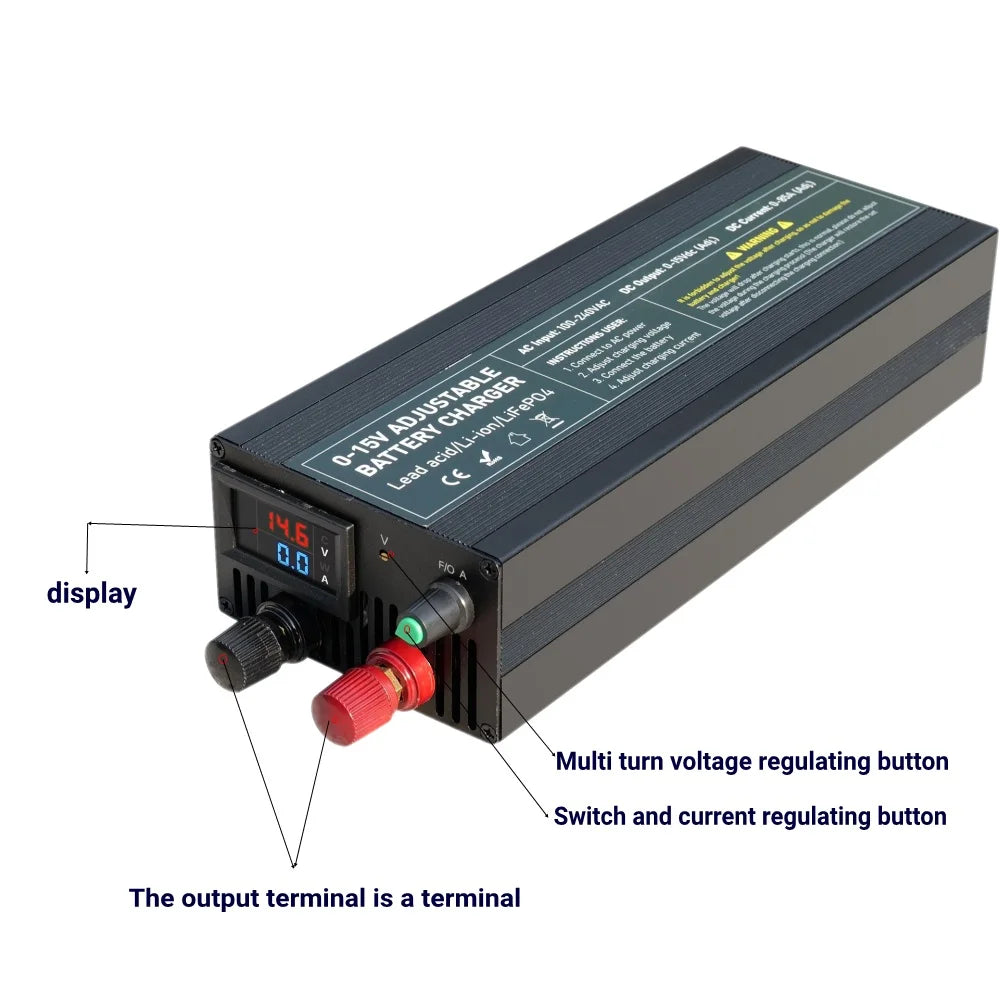

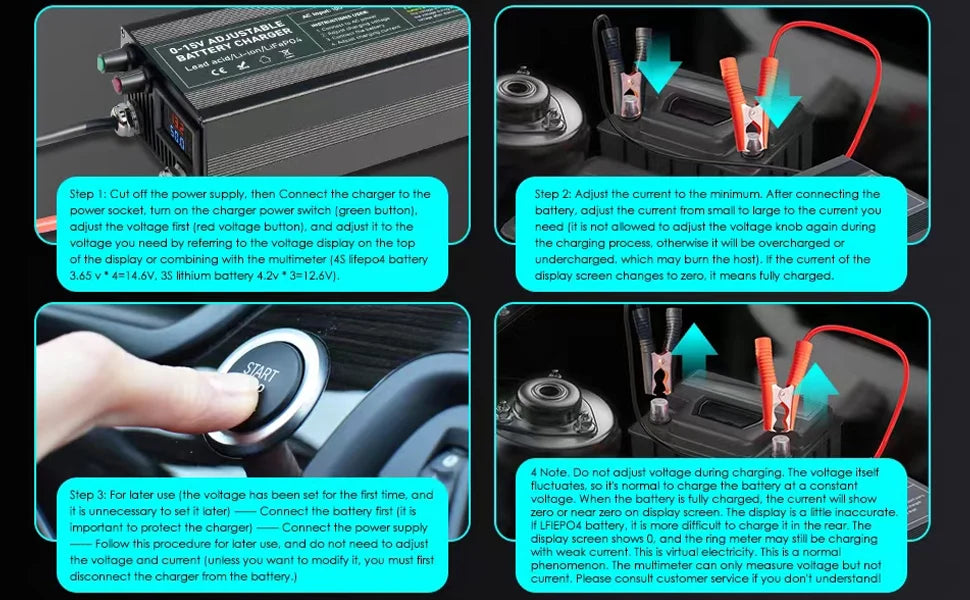

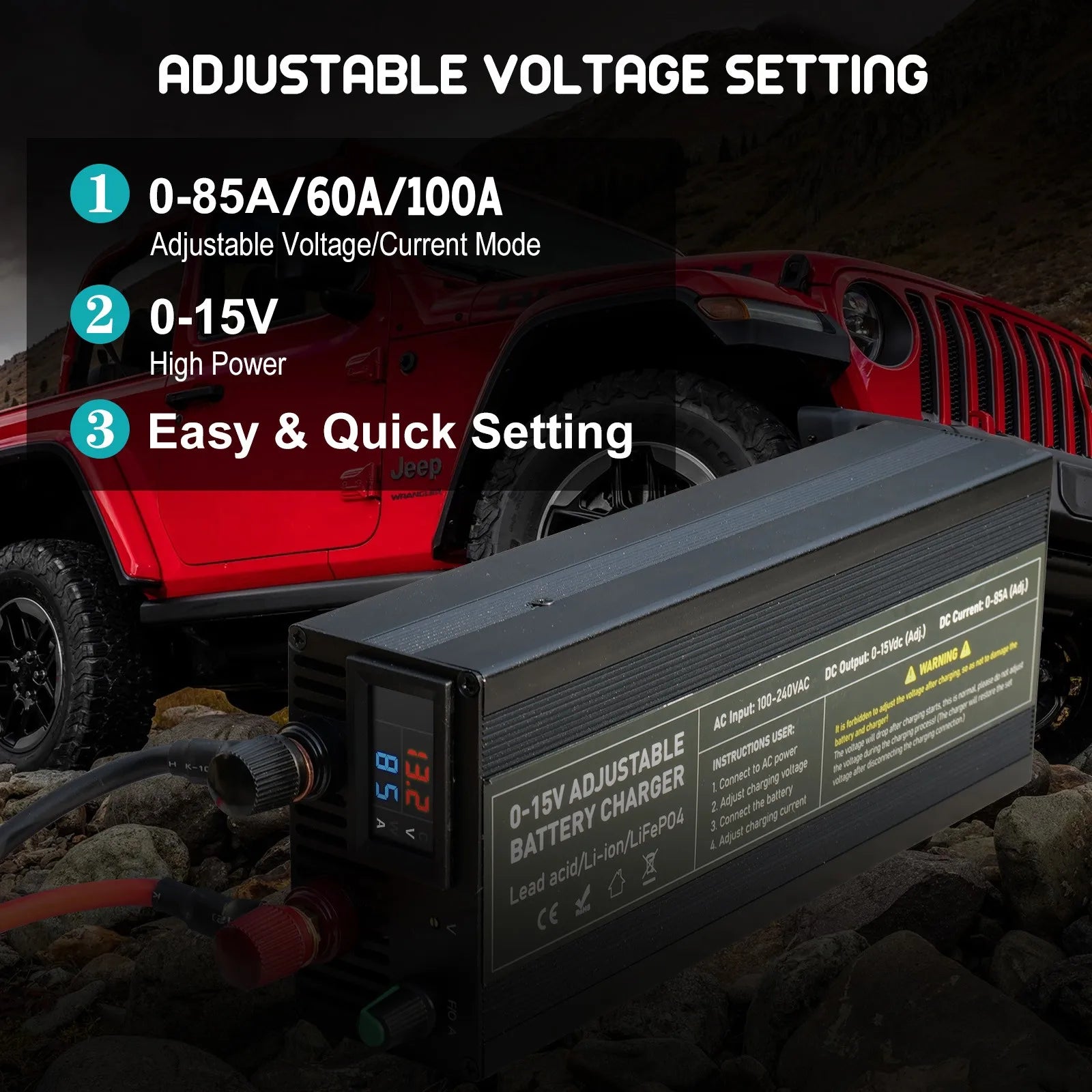

Step 1: Do not connect the battery to the charger. Turn on the power and adjust the voltage knob to adjust the voltage. Refer to the voltage display at the top of the display screen (4S lifepo4 battery 3.65 v * 4=14.6V, 3S lithium battery 4.2v * 3=12.6V), adjust to the voltage you need (you can adjust the voltage with a multimeter. There may be slight errors on the display screen).

Step 2: Turn on the current button and rotate it to the right to increase it a bit. After connecting the battery (+To+, - To -), adjust the current from small to large to the current you need. If the voltage in volts is displayed and the current becomes zero, it indicates that it is fully charged. (Warning: Do not adjust the voltage knob again during the charging process, otherwise it will burn out the main unit)

Step 3: When using it later (the voltage has been set for the first time of charging, no need to set it again later) -- -- Connect the battery first (it is important to protect the charger) -- -- Then connect the power -- Follow this step for future use, and there is no need to adjust the voltage and current (unless you want to modify it),

Video operation method: https://youtu.be/3QDYR0f2Td8

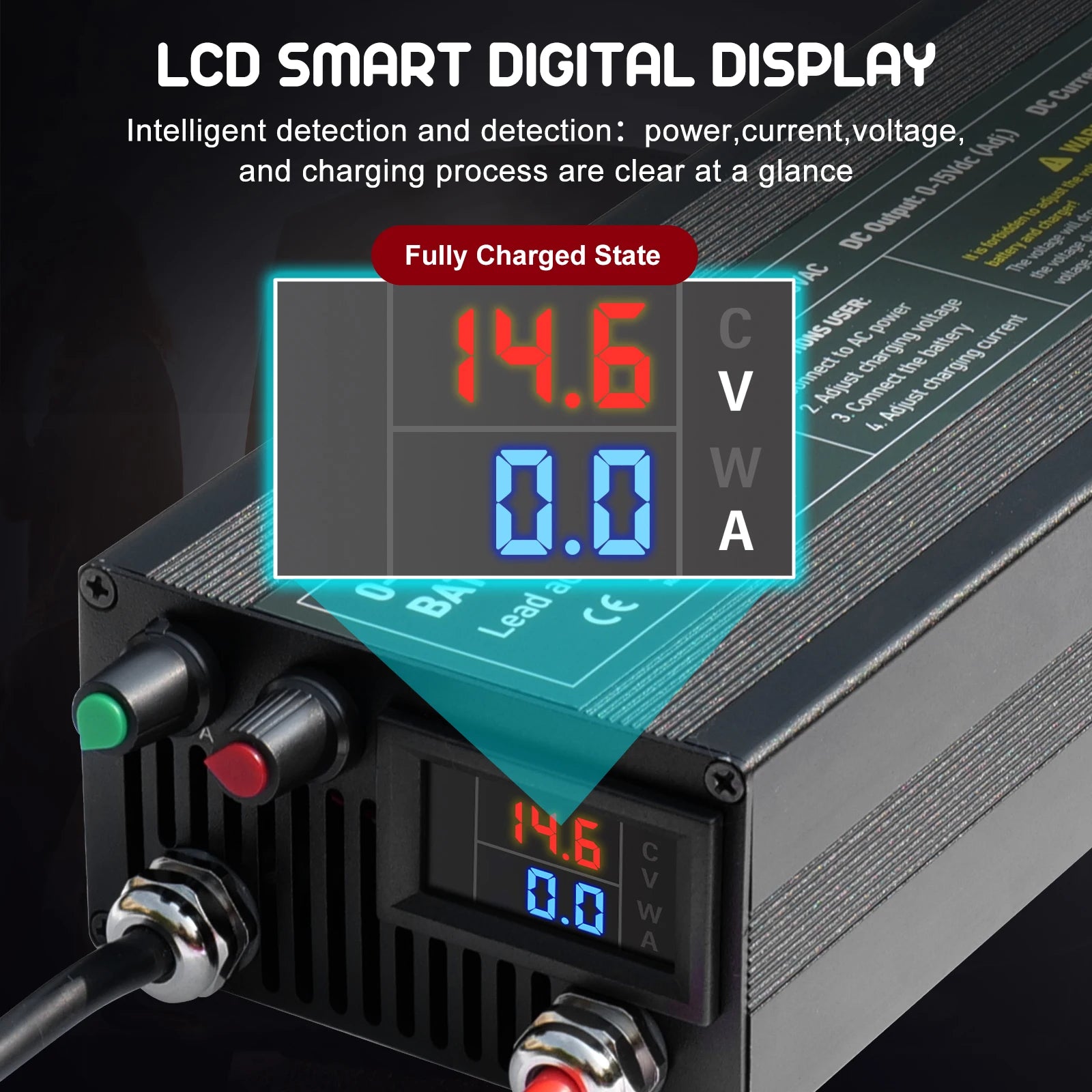

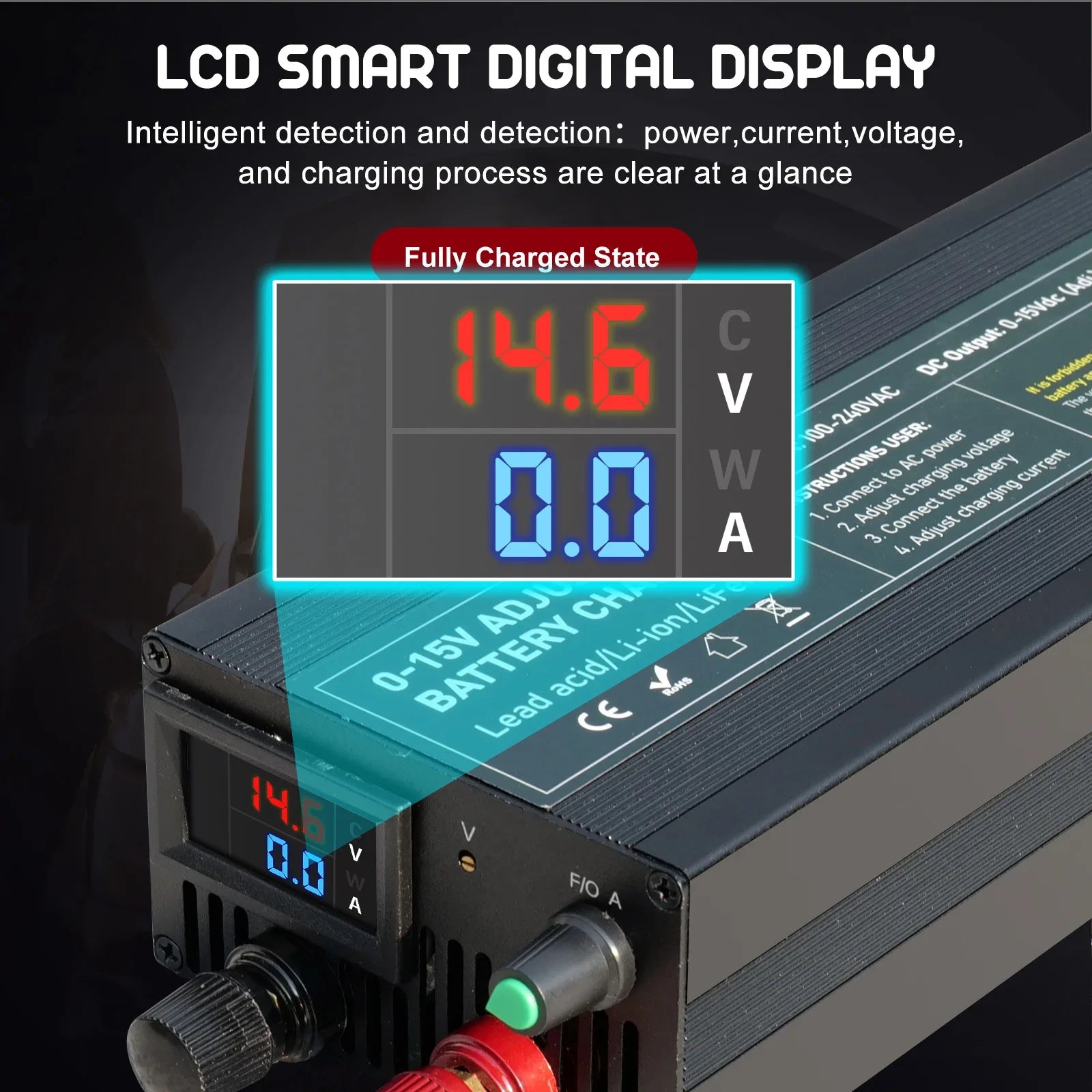

Do not adjust the charger voltage during charging. The voltage of the charger itself fluctuates, and constant voltage charging of the battery is normal. When the battery is fully charged, the current on the charger display screen will be displayed as zero or close to zero. The display screen is a bit inaccurate. If it is an LFIEPO4 battery, it becomes more difficult to charge it later on. The display screen shows 0, and the multimeter may still have weak current charging. This is virtual electricity. This is a normal phenomenon (if you don't understand, please consult customer service!)

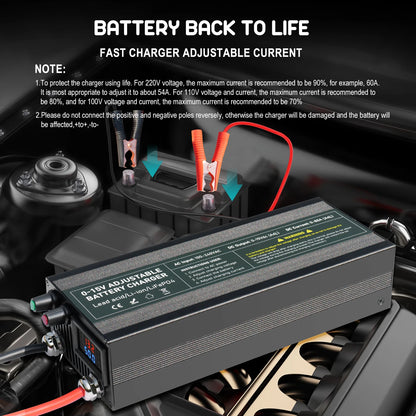

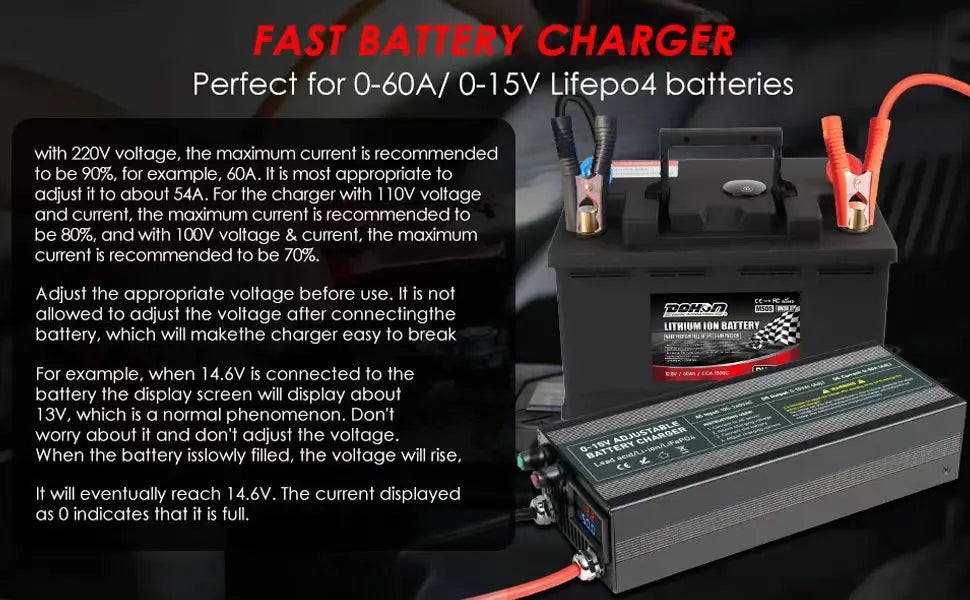

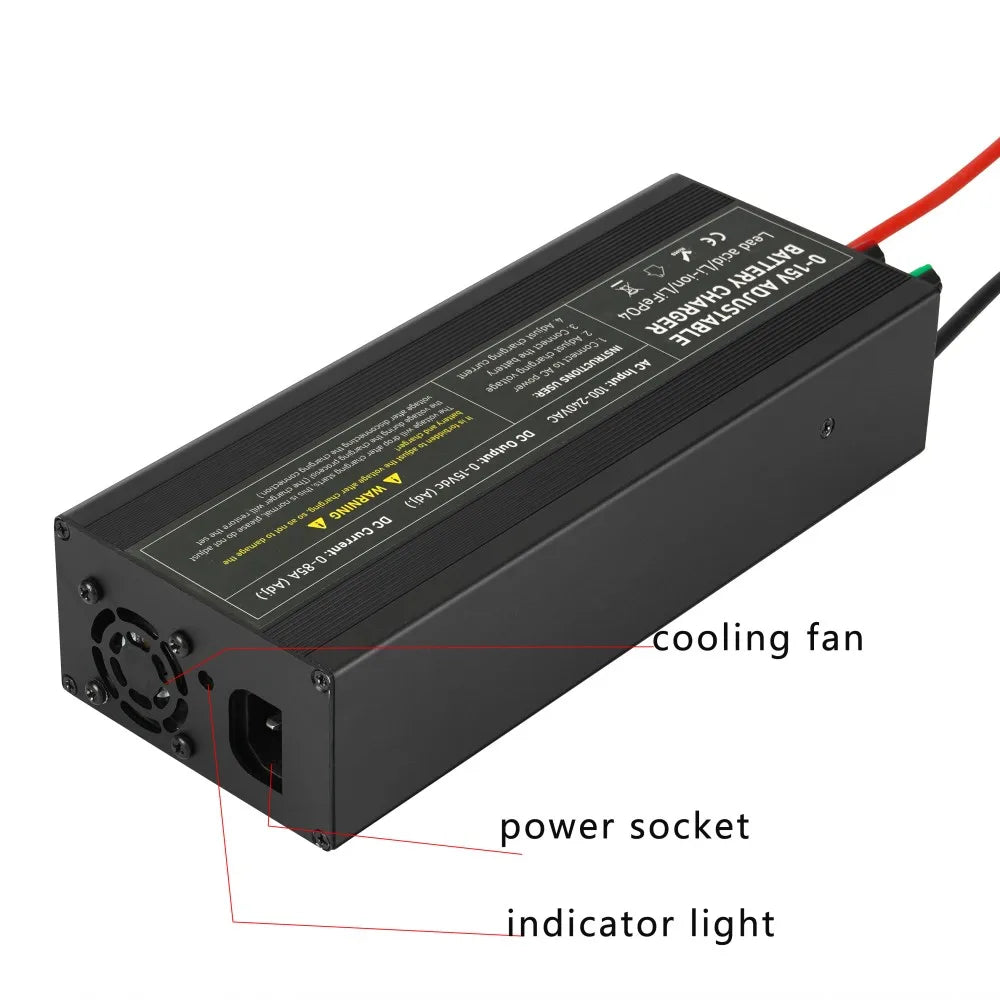

As long as the power is connected, the fan will start. We suggest disconnecting the power after being fully charged. To extend the lifespan of the charger. Charger 220V voltage, maximum recommended current is 90%, maximum recommended current for 110V voltage is 80%, maximum recommended current for 100V voltage is 70%, for example, 60A. Adjusting it to around 54A is most suitable,

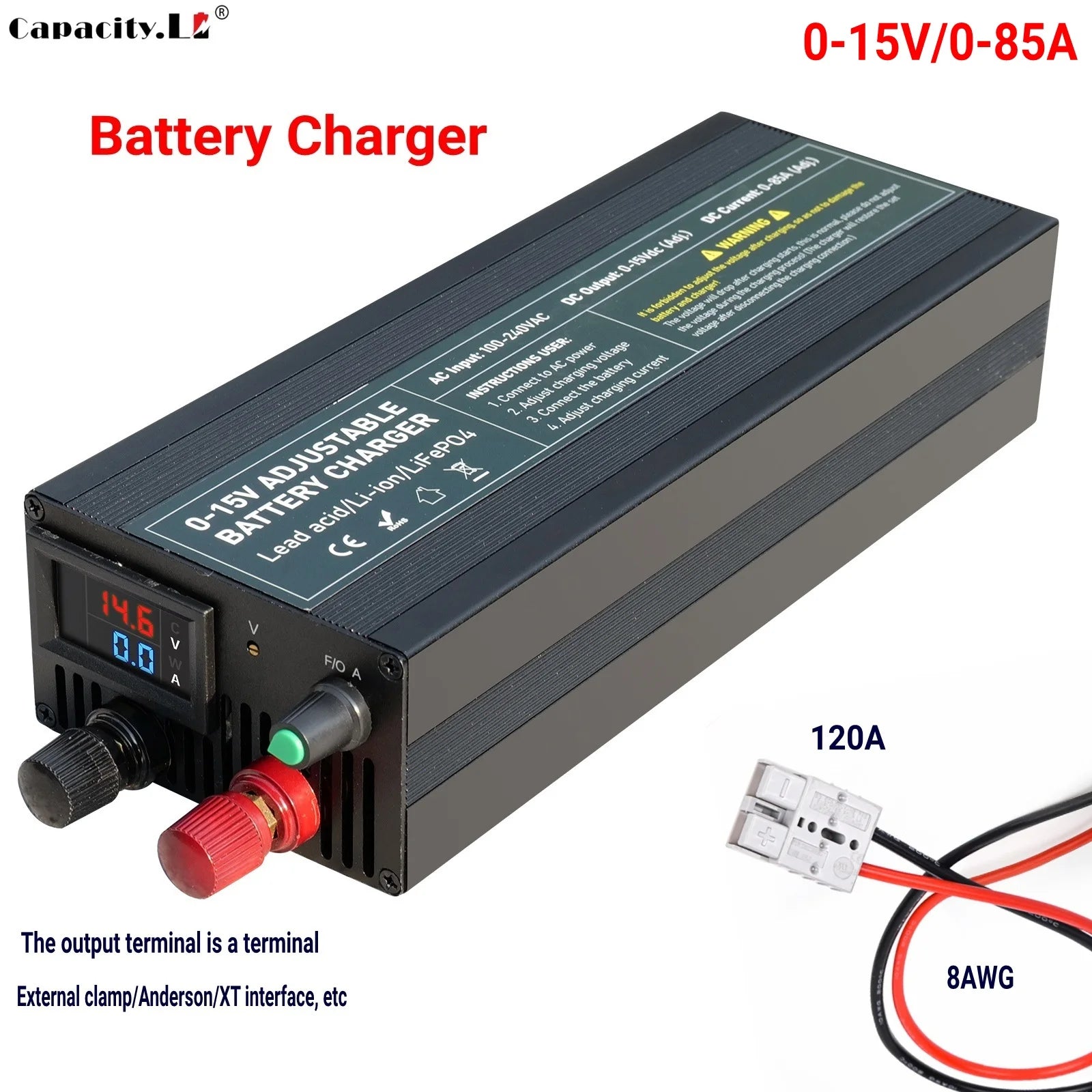

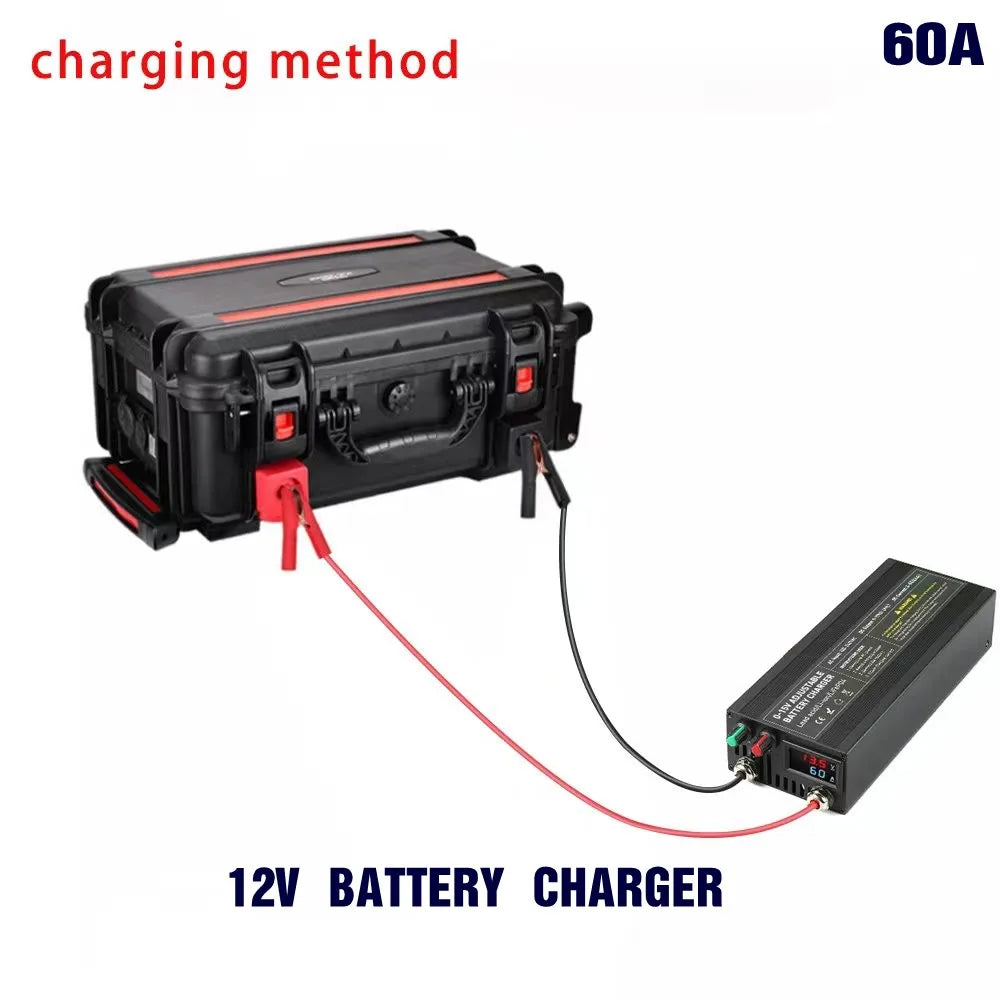

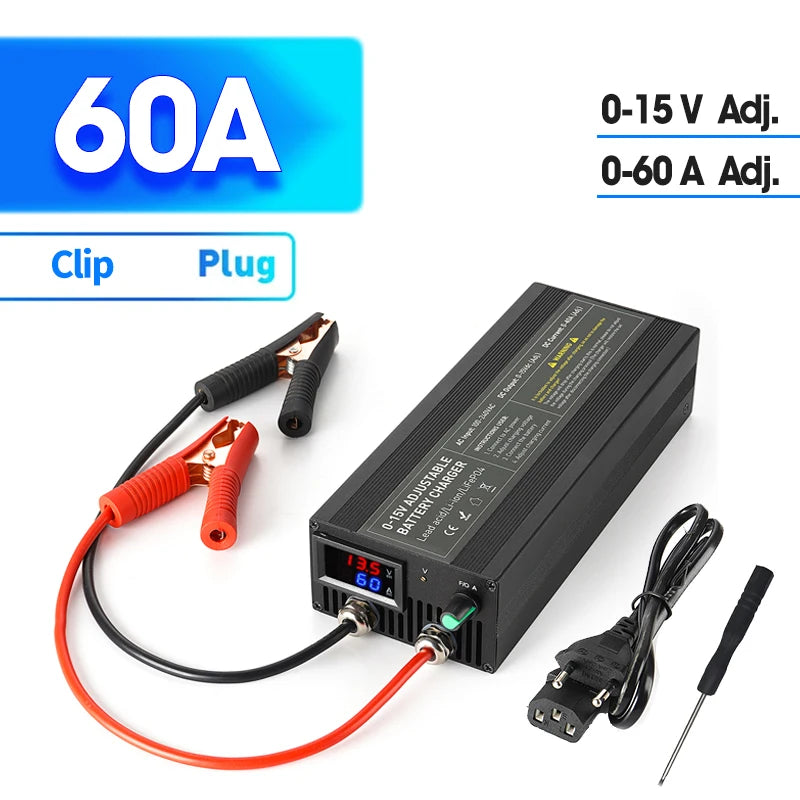

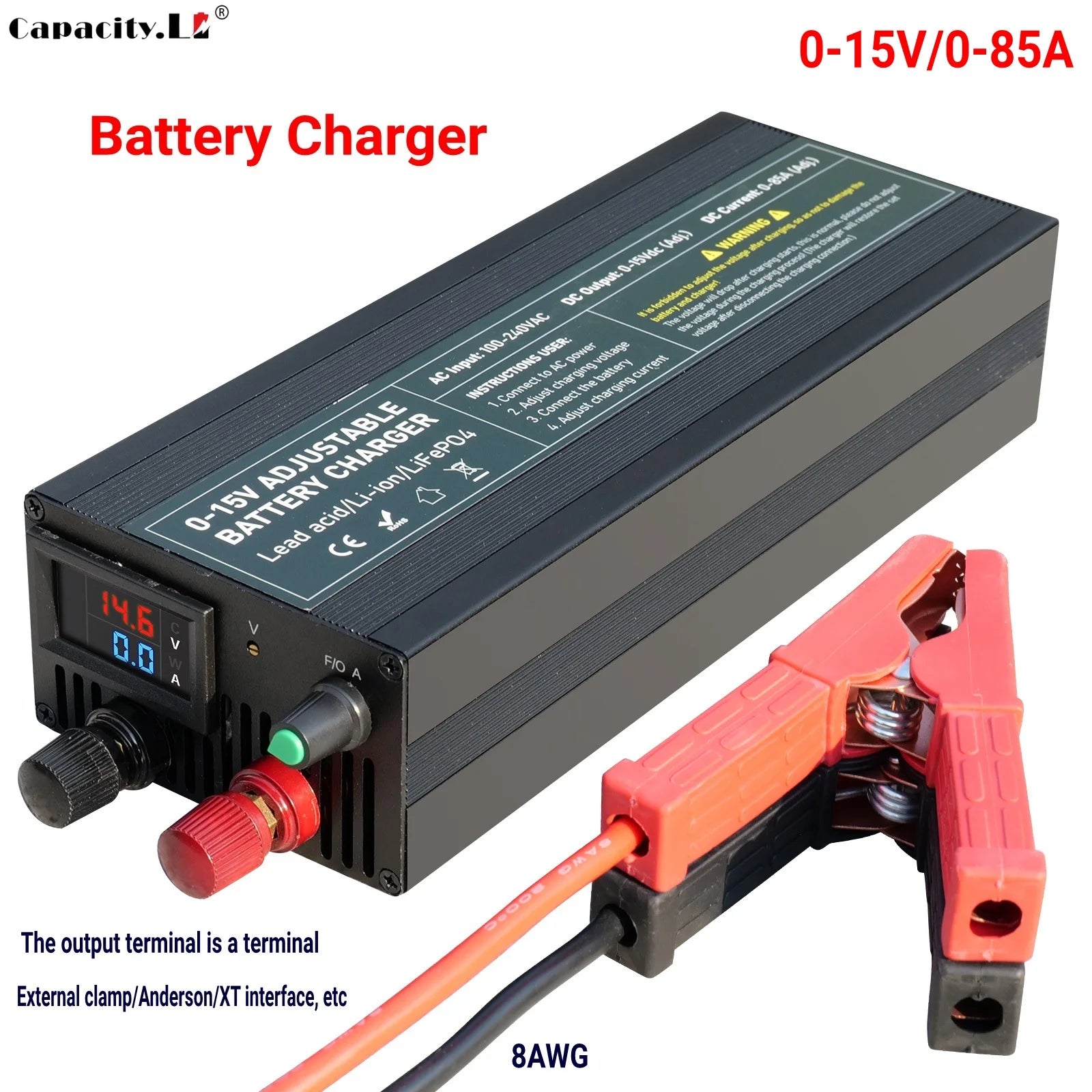

How to use the charger: first connect the charger's power cord to the specified interface of the charger. After the display shows 14.6V or 12.6V, connect to the battery through an alligator clip or Anderson cable. The red clip is connected to the red terminal of the battery. The black clip is connected to the black terminal of the battery. Red is positive. Black is negative.
The following is an introduction to multi loop chargers. More sensitive to voltage. Better operation.









3-stage charging (CC, CV, TC）

The first stage of constant current and constant voltage charging is charged with a constant current; When the voltage reaches the predetermined value, it enters the second stage for constant voltage charging, during which the current gradually decreases; When the charging current drops to zero, the battery is fully charged. This is the most commonly used charging method for lithium batteries,
So the charger won't always display the maximum charging value.

For example, if you use a 100A charger to charge a battery, if the battery is at 80% charge, the charger will only display 20A instead of 100A, and it will be 0 when fully charged,
